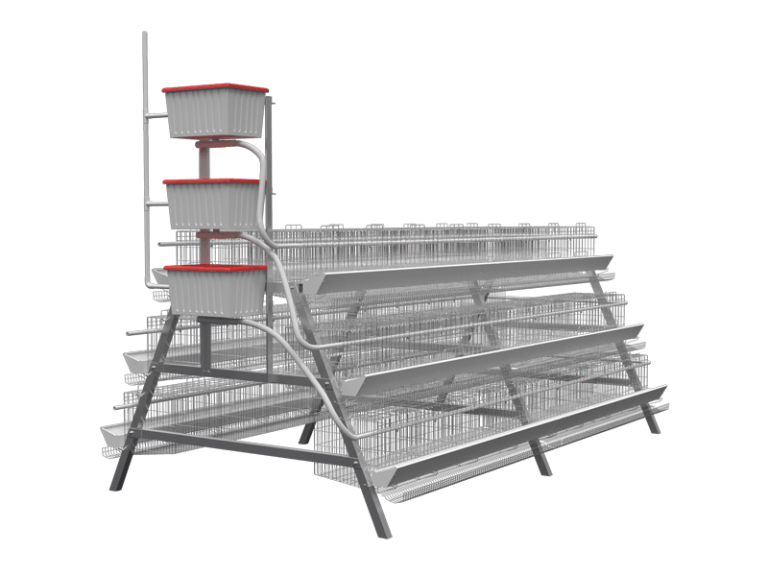

A Type Battery Cage

  • Product: A Type Battery Cage
  • Tiers: 3-4
  • Material: Hot galvanized, Q235
  • Lifespan:  20 years
  • Certificate: IS09001, CE, SGS, SONCAP

Images of A type battery cage

1.A Type Battery Cage Features

Do you want to know how the A Type of Battery Cage works?

chicken

Easy start-up of modern chicken farm
● Simple A-type design.
● 20 years of service life.
● Low power consumption.
● Egg broken rate does not exceed 0.5%.

construction worker

Free matching automatic Supporting System
● Automatic egg collecting system.
● Automatic manure cleaning system.
● Automatic feeding system.
● Automatic environment control system.

Apply to different chicken houses
● Closed chicken house.
● Semi-open type chicken house.
● Open type chicken house.

laptop screen

Upgraded to smart farm
●Integrate all data of the farm.
●Smart control the whole farm.
●Inspect chicken house at any time.

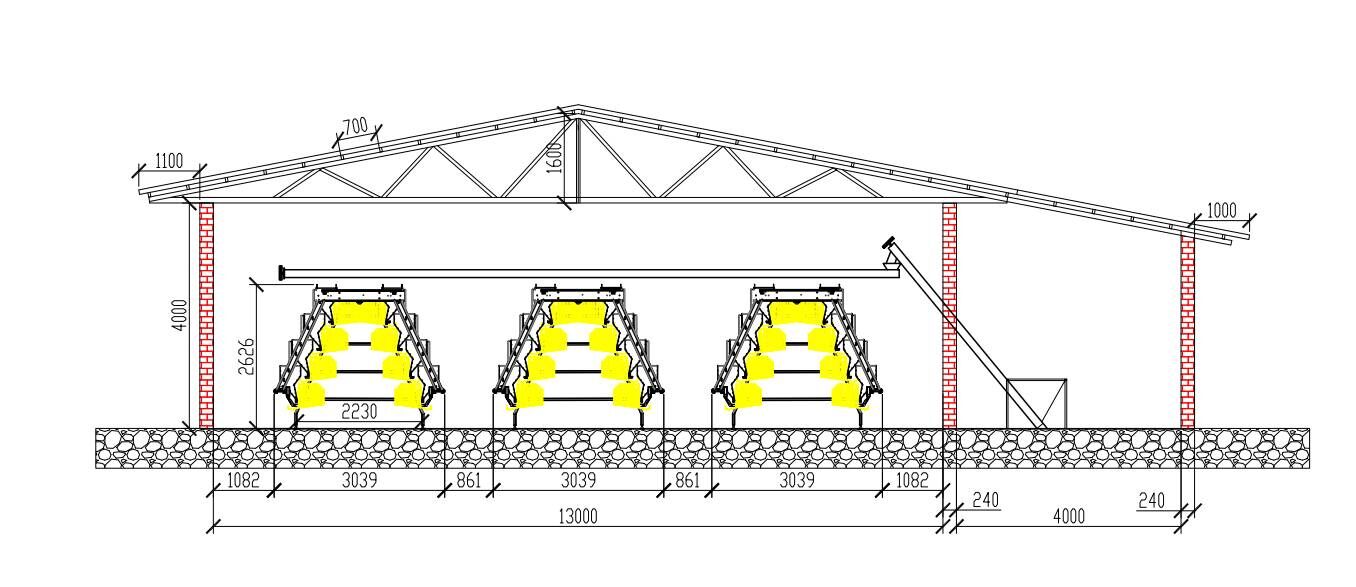

2.Drawing of A Type Battery Cage Layout

95(L)*13(W)*4(H), 20160 Birds/House
A Type Battery Cage 4 Tier-3 Rows Layout Design

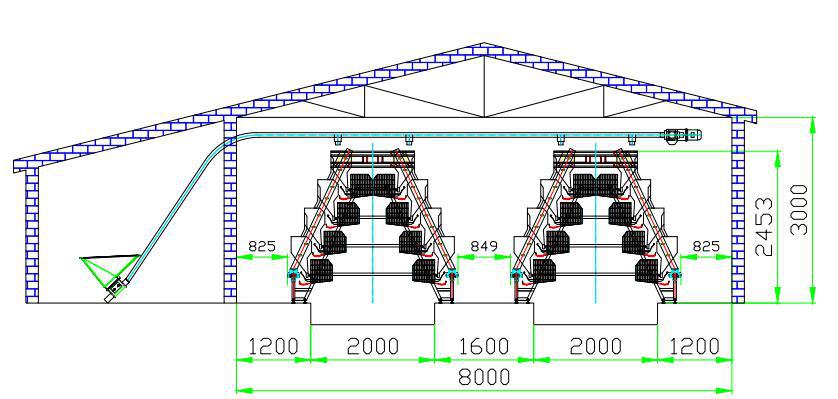

86(L)*8(W)*4(H), 10,240 Birds/House
A Type Battery Cage 4 Tier-2 Rows Layout Design

3.Specification List of A Type Battery Cage Systems

A Type Battery Cage Systems
Cage size Door No. /cage Chicken No. /door No. of layer Capacity of one set of cage Area per head (sqcm) Length of the cage with frame Width of installed cage with feeding machine Height of installed cage with feeding machine Length of manure cleaning machine Length of egg collection machine
1950*350*380 5 3 3 90 455 2000 2450 1995 1600 3000
1950*350*380 5 3 4 120 455 2000 2800 2455 1600 3000
1950*450*410 5 4 3 120 438.75 2000 2625 2050 1600 3000
1950*450*410 5 4 4 160 438.75 2000 3075 2530 1600 3000

4. Advantages of A Type Battery Cage

I.Clever Design of Cage Mesh

  1. 439cm²/bird: Suitable cage space, chickens grow better, lay more eggs
  2. Bottom Mesh with 8 ° Slope: The egg rolls down gently, low number of cracked eggs
  3. Sliding door with clip: Simple to move birds in and out, no chicken escape.
  4. One Reinforcing Ribs at Each Bottom Mesh: 50kg/㎡ Load-bearing Bottom Mesh, cage won’t bend after putting heavy chicken

II.Saving Chicken Feed

  1. Feed uniforming device: Give chickens uniform feed, so chicken weight is even, lay more eggs
  2. Feed returning device: Return feed back to feeder trough, save chicken feed
  3. Big size PVC feeder trough: Minimum feed losses

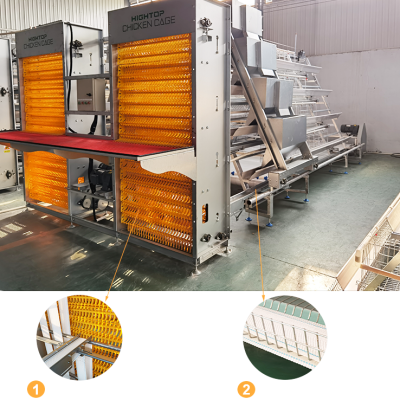

III.Reduce Egg Broken Rate (<0.5%)

  1. Nylon egg collection belt: Good elasticity, reduce egg breaking rate.
  2. Less manual work: less touch on eggs, less egg-breaking break rate.

IV.High Quality

  1. Q235 carbon wire for cage mesh: stronger tensile strength with more than 20 years of lifespan
  2. 2mm thick U type cage frame: more stable to support chickens
  3. All steel sheet we use is  Zinc Aluminum Magnesium surface treatment:  marine grade surface treatment, anti-rust, have very good performance.

5.Full Automatic System

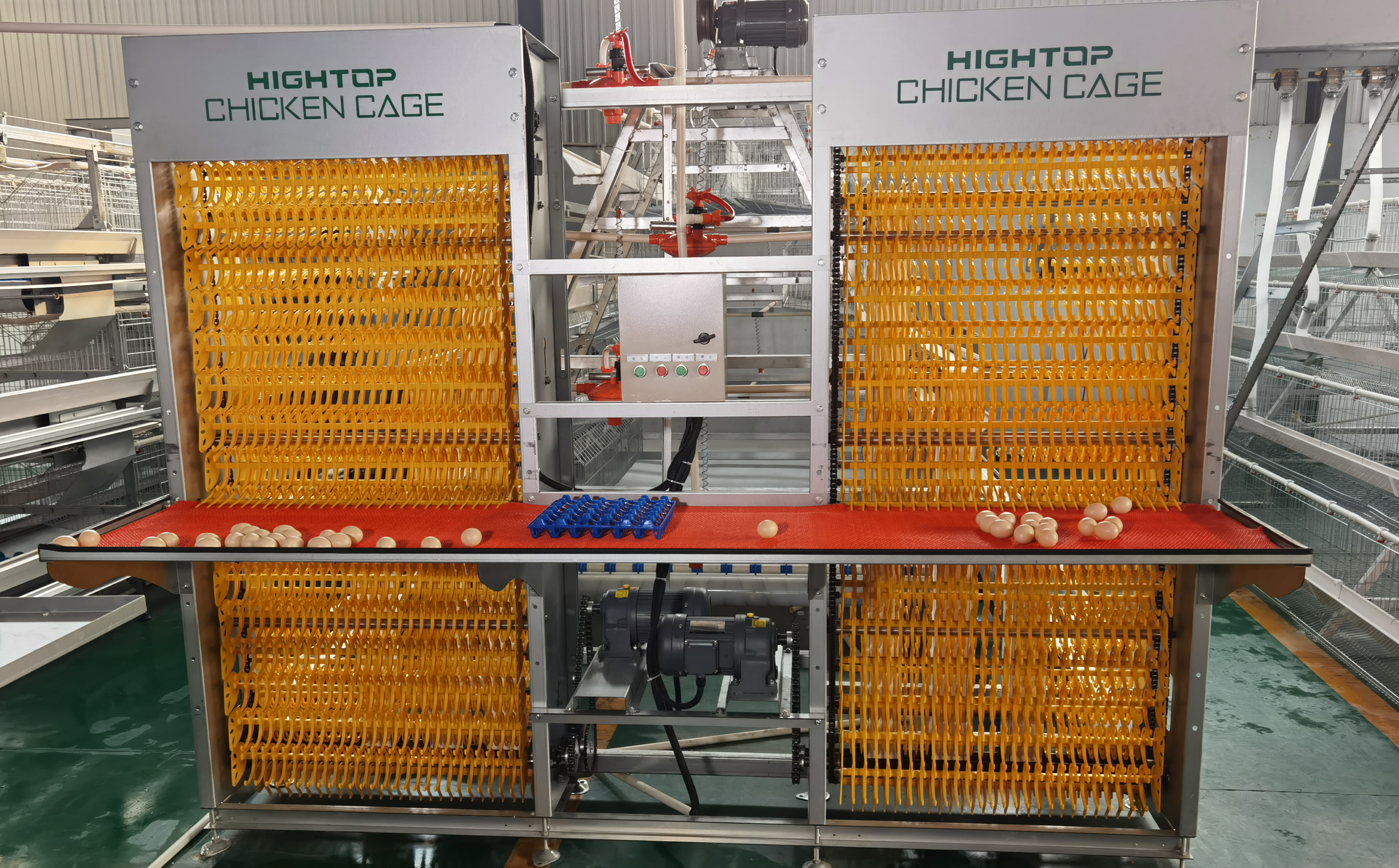

Automatic Egg Collection System

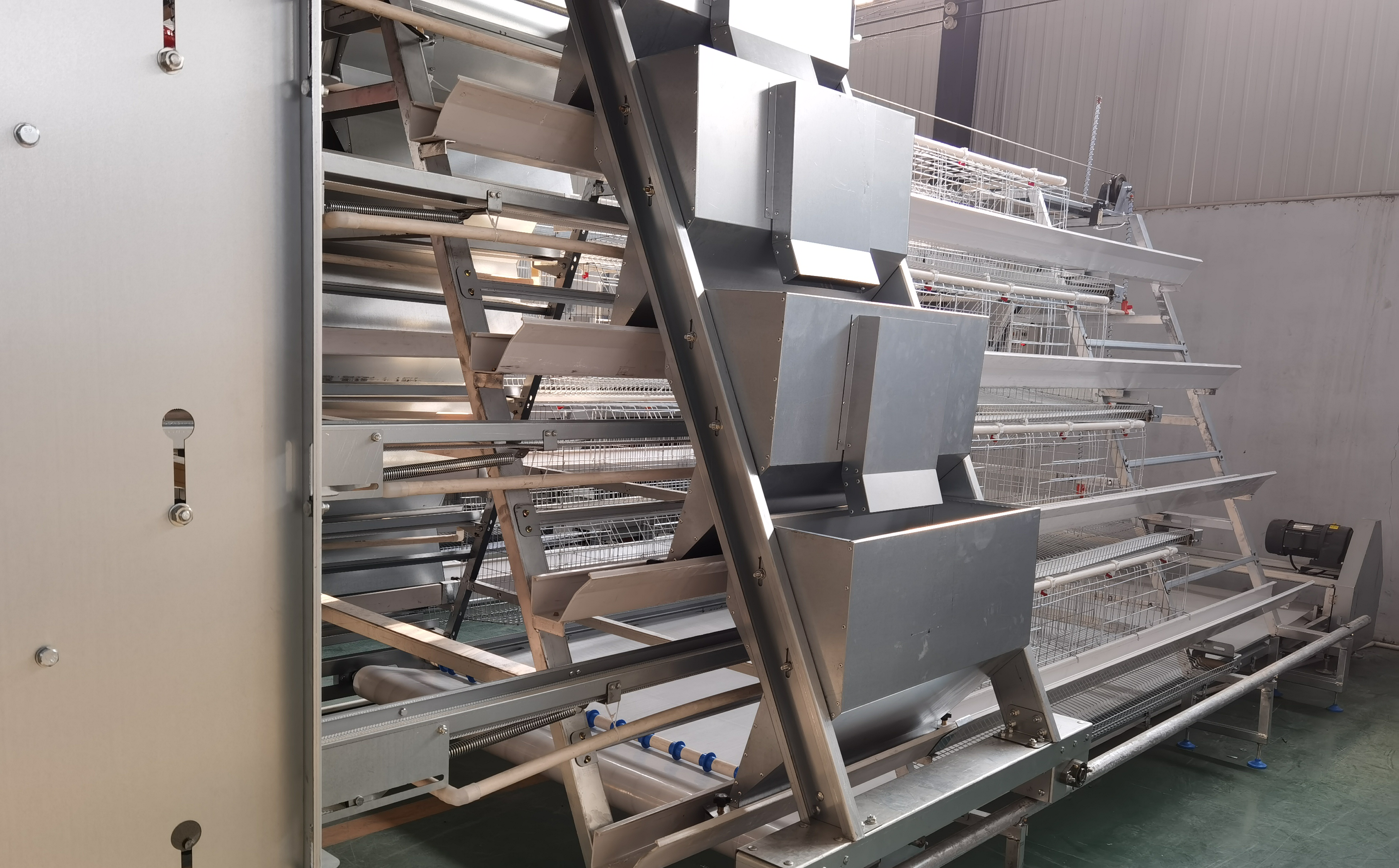

Automatic Feeding System

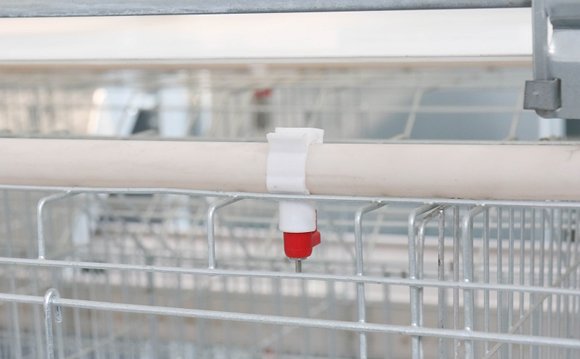

Automatic Drinking System

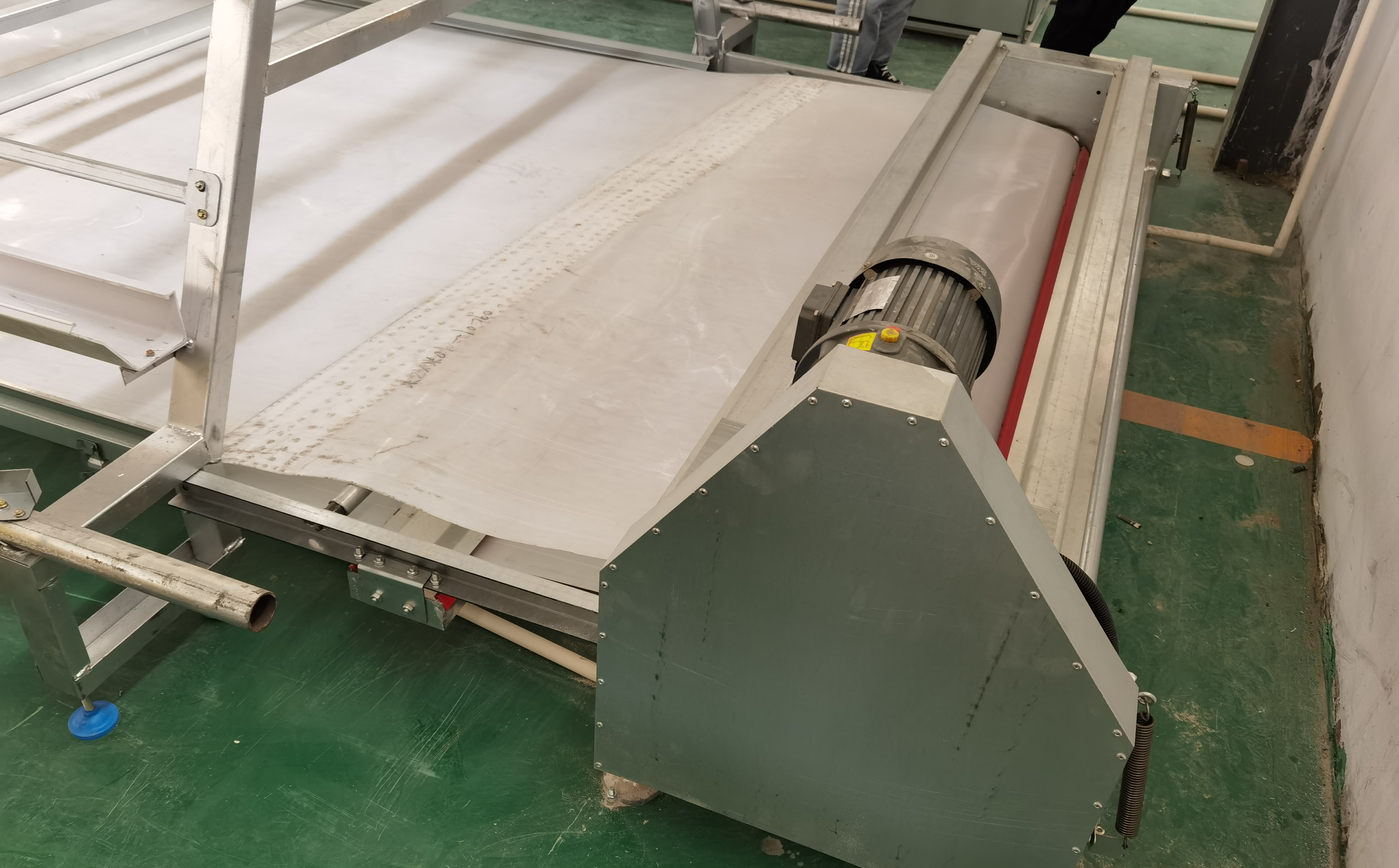

Automatic Manure Cleaning System

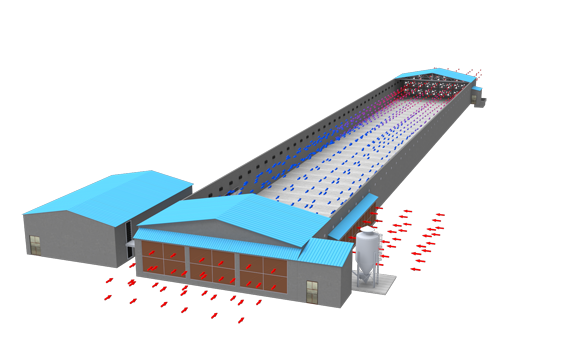

Environment Control System

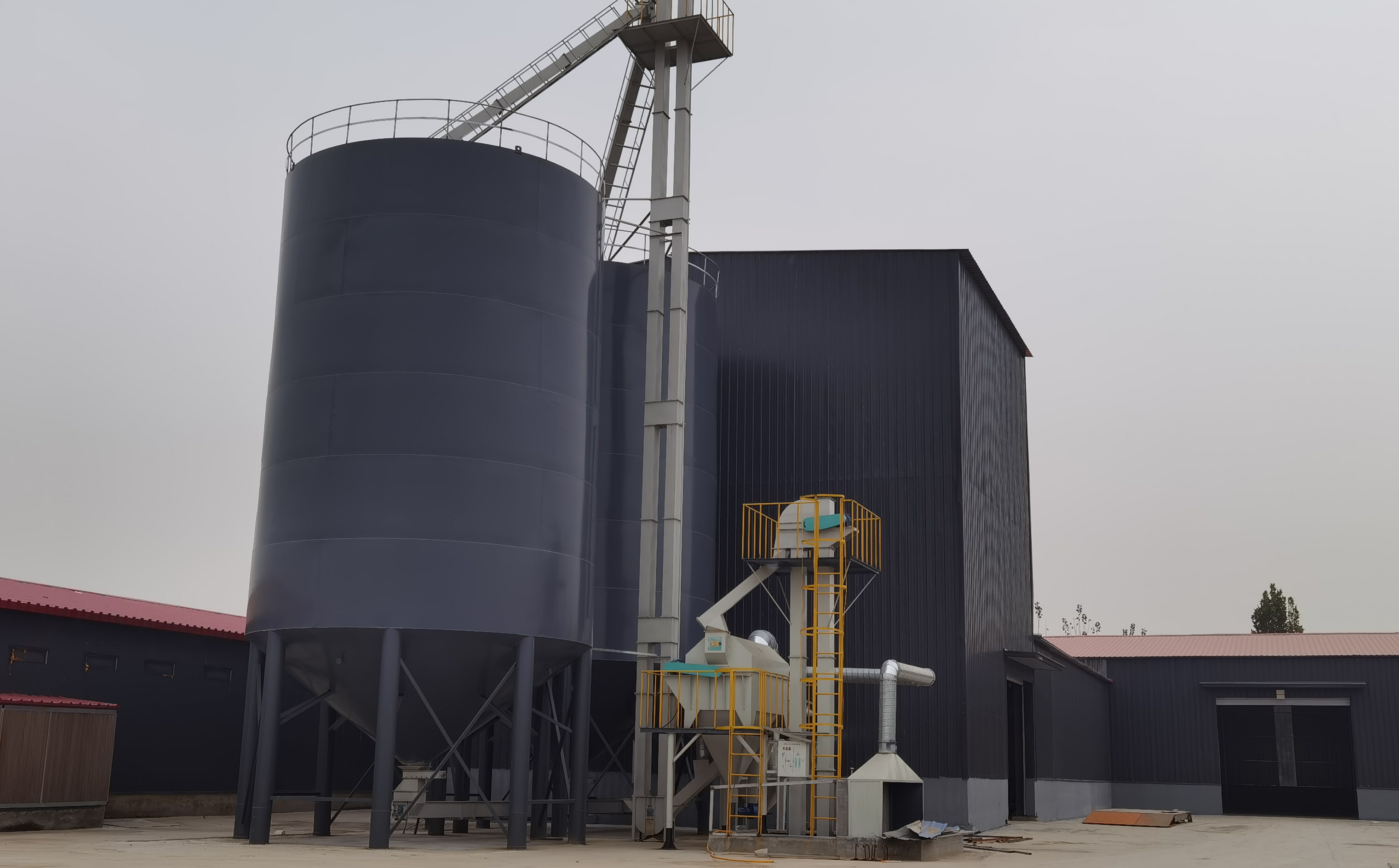

Silo

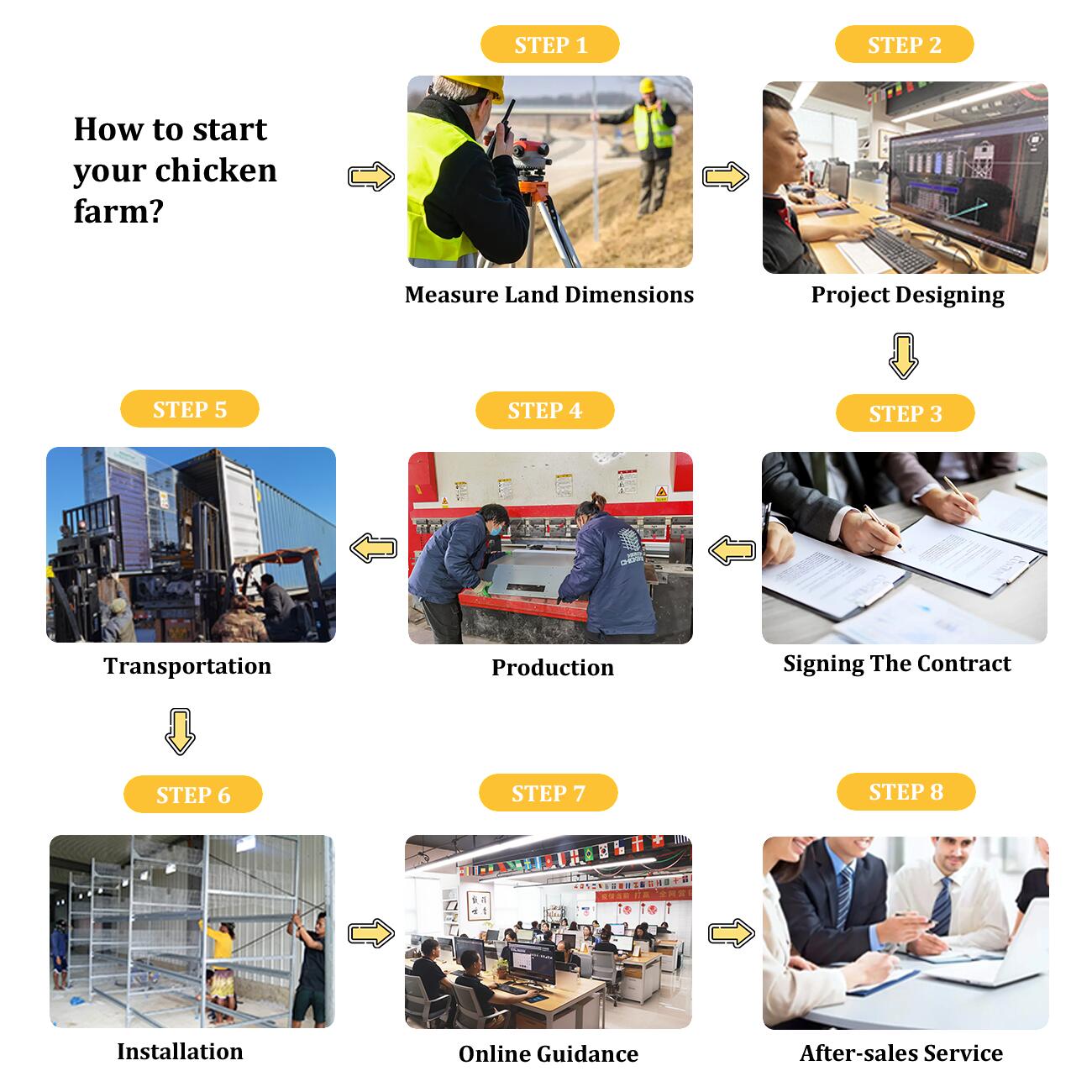

6.Whole Process Solution

7.Our Certification

ISO9001

Date of certificate: June 5, 2022
ISO 9001(Quality Management System Certification)

Supplier Certification

Supplier Certification

PVOC

Date of certificate: 2017
PVOC(Pre-Export Verification of Conformity)

Contact Us

We would like to hear from you. Please send us a message by filling out the form below and we will get back with you shortly.

1 Step 1
keyboard_arrow_leftPrevious
Nextkeyboard_arrow_right
FormCraft - WordPress form builder

Related Products

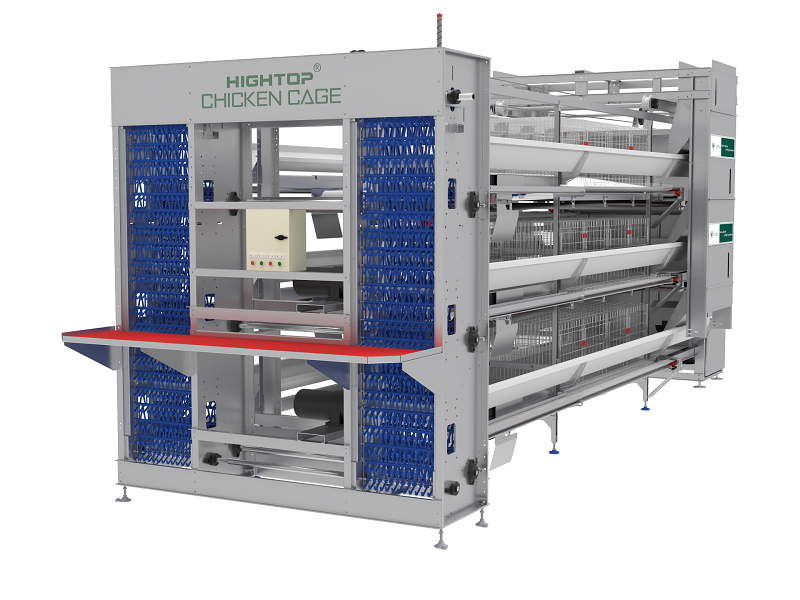

Economical H Type Battery Cage

Economical H Type Battery Cage
  • Applies to: closed house
  • Life Time:20years
  • Tiers:3-4 Tiers

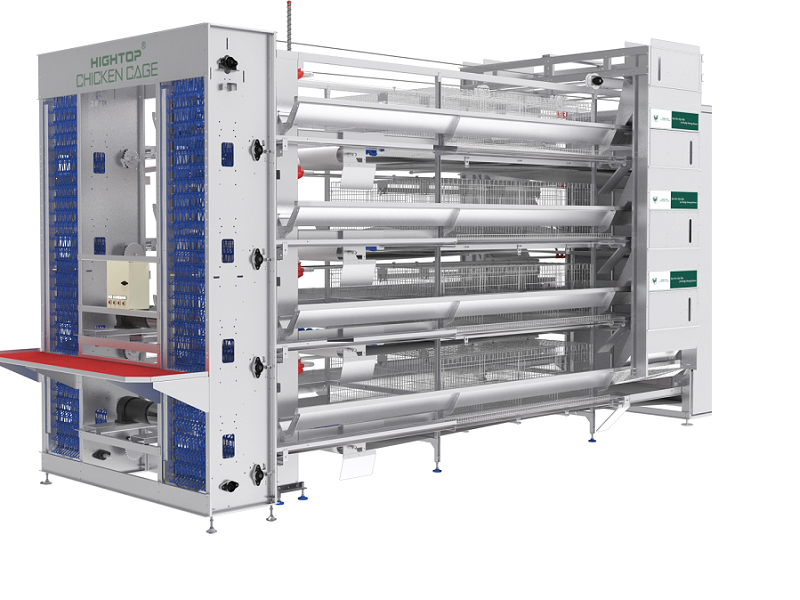

Standard H Type Battery Cage
