HIGHTOP H Type Battery Cage Product Details

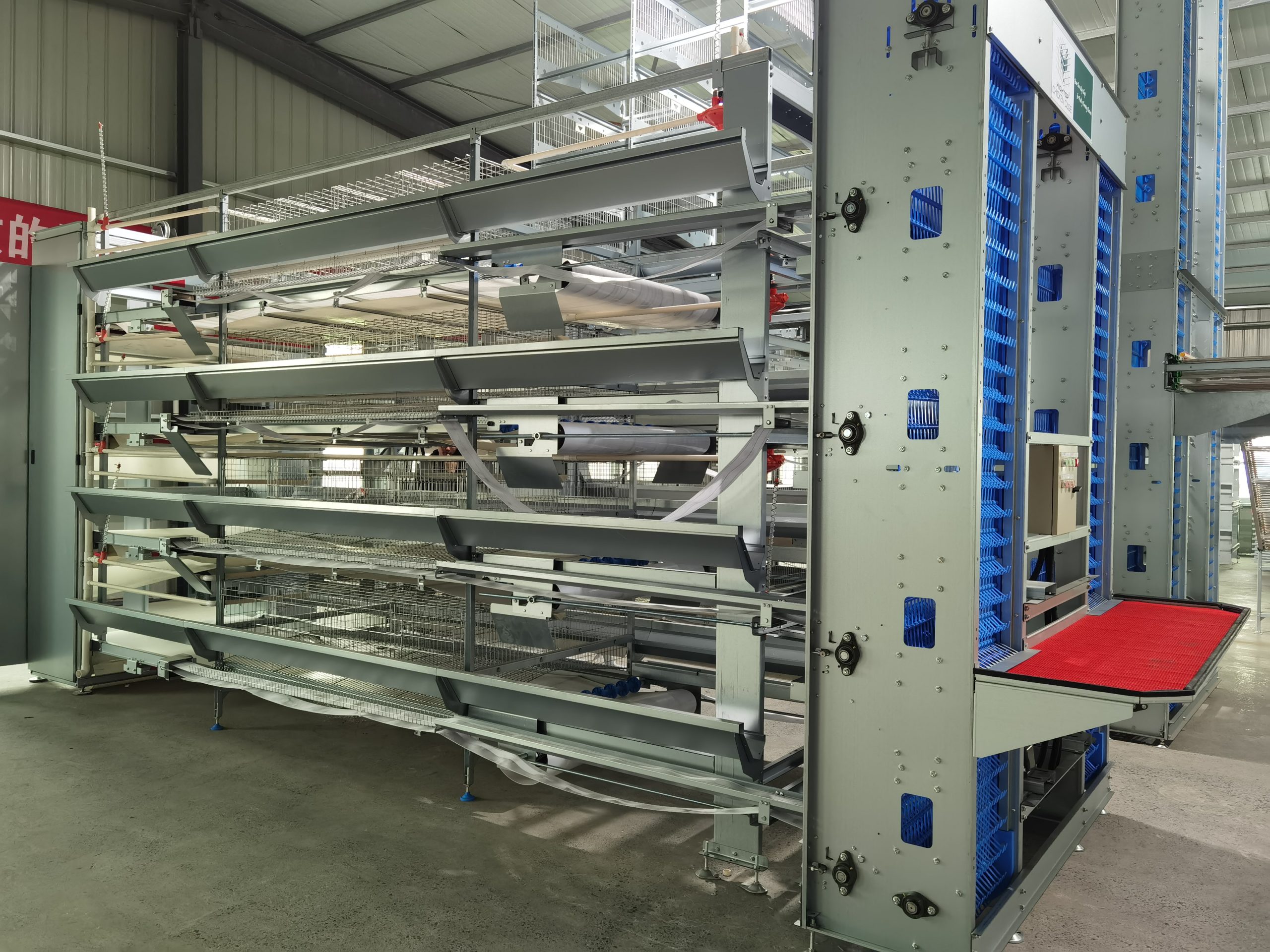

HIGHTOP H type battery project real shot

HIGHTOP H Type Battery Cage

Material: Hot dipped galvanized, Q235
Life Time: 20 Years
Certification: ISO 9001,SONCAP, PVOC
Tiers: 4-8Tiers
Chicken House Depth:625 mm
Feeding Trough: Metal type
Water Pipe Shape: Square tube
Water Pipe Thickness: 3mm
Nipple Drinker: Cone valve

Images of HIGHTOP H type battery cage

1. H Type Battery Cage Features

Do you want to know how the H-type battery cage works?

Working details of each system of HIGHTOP H type battery cage

2. accessory of HIGHTOP H type battery cage

3-8 Tier
Large Chicken House
(30000-80000 Birds per House)

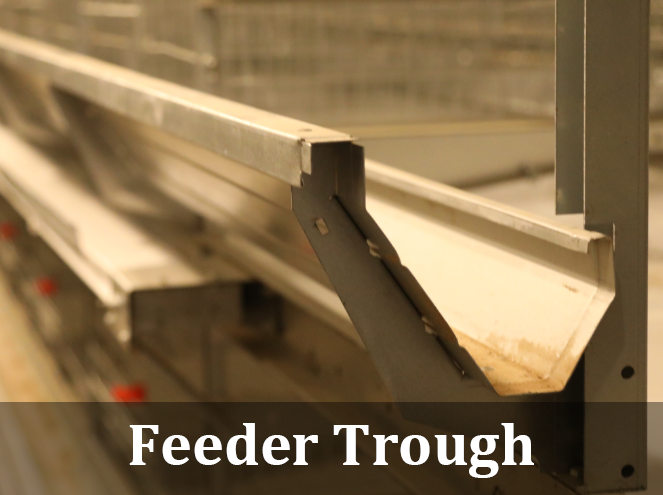

Feeder Trough: Metal type (275g zinc coating)
1.V-shaped trough, saving feed
2.High load-bearing, not easy to deform

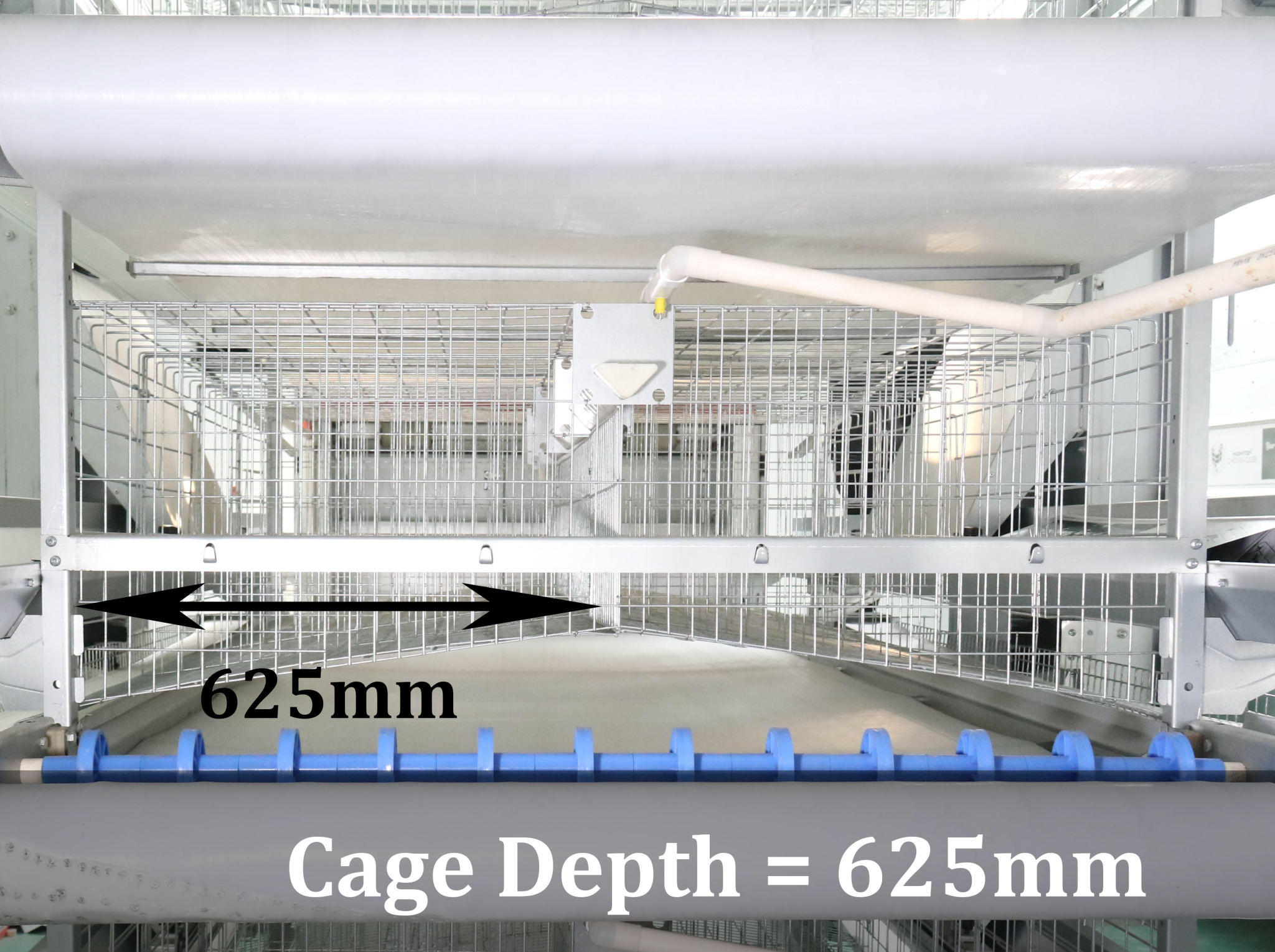

Cage Depth = 625mm
1.Reasonable size design, 8 birds each cage
2.Uniform weight of chickens, reduce mortality

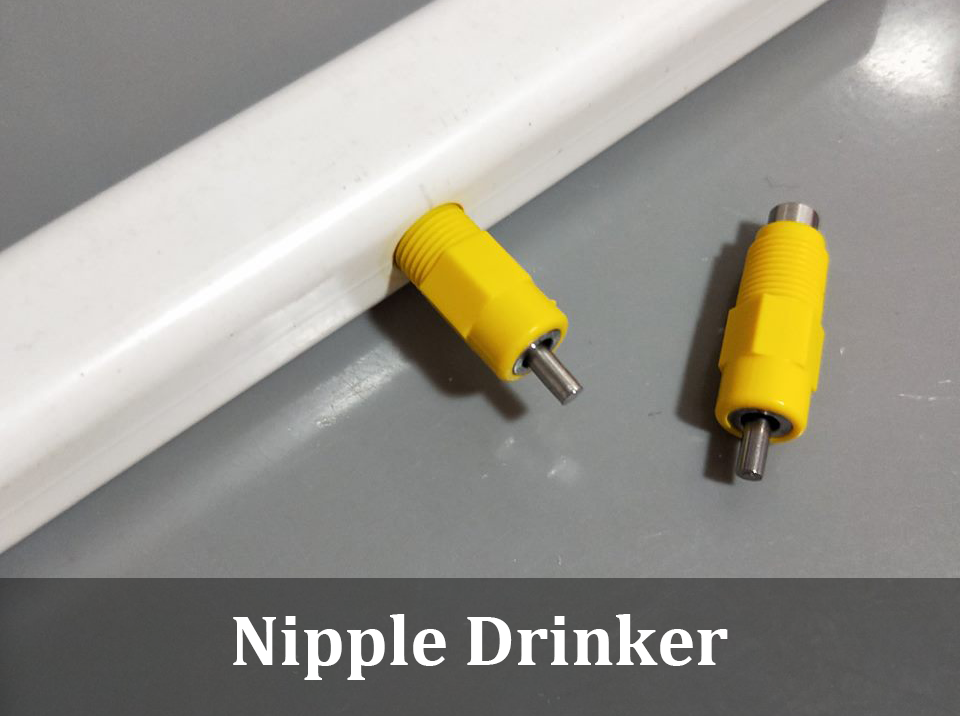

Nipple Drinker: Cone Valve
1.Stable center of gravity, increase tightness
2.Prevent water leaking, saving water

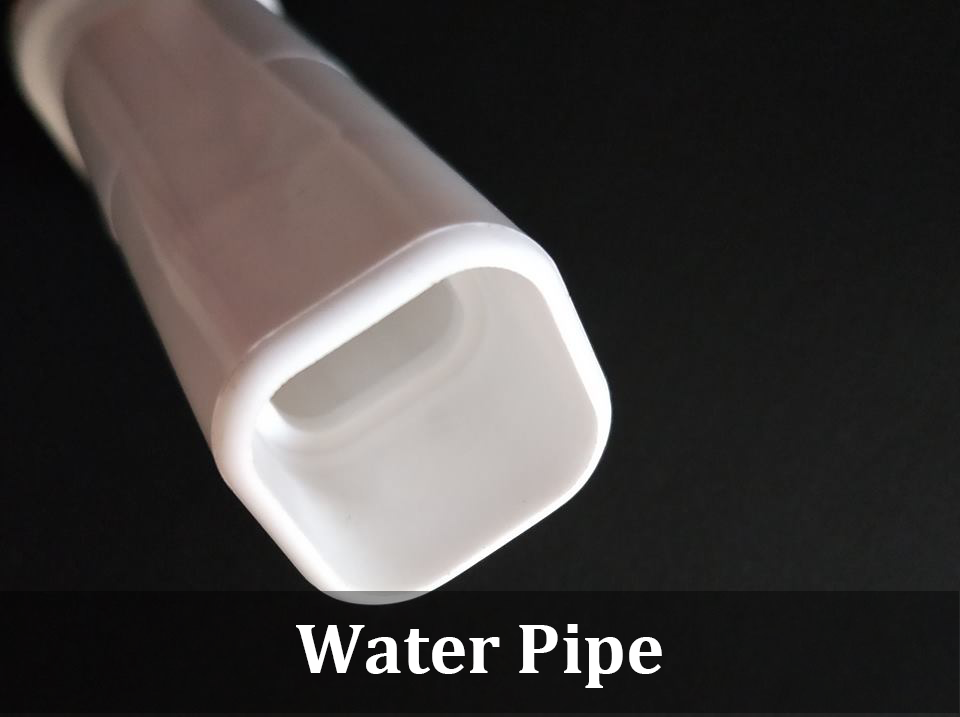

Chicken Waterer: Square Water Pipe
1.3mm thick water pipe, not easy to deform
2.Prevents light from penetrating, no moss, anti-blocking

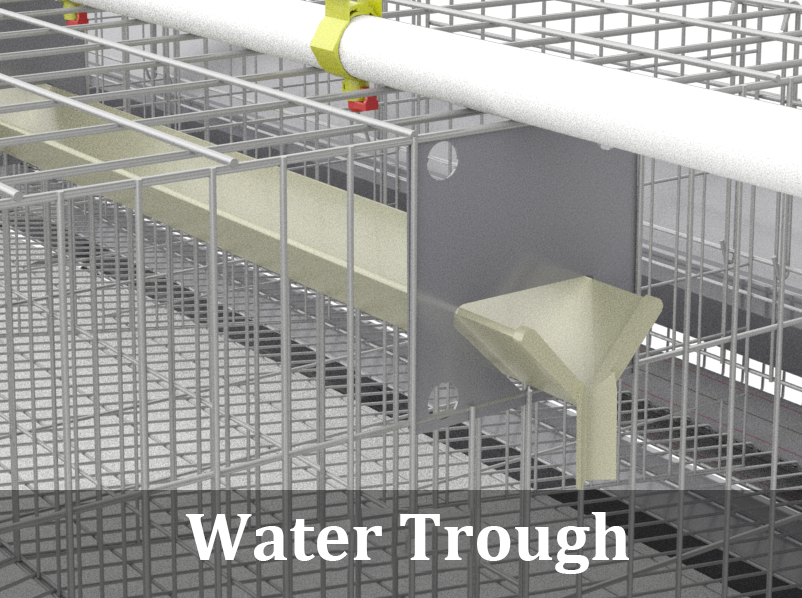

Water Tough
1.Collect water, prevent water from leaking
2.Keep the manure-removing belt dry and clean

3. Advantages of H Type Battery Cage

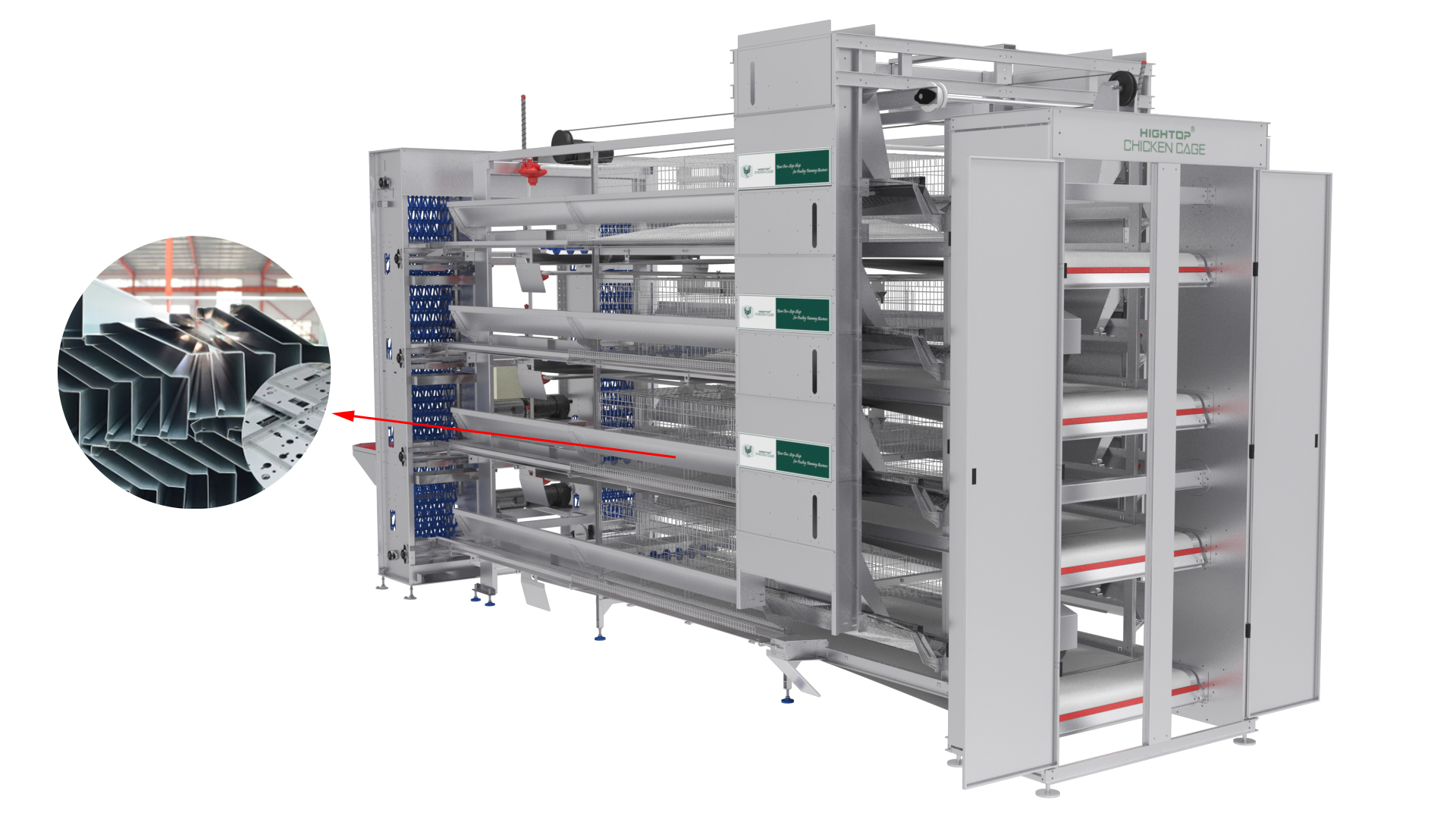

I.Reduce Broken Egg Rate (<0.3%)

  1. “L” type egg holder: less space than “C” type, reducing broken eggs
  2. Metal plates change the direction of egg transport: reduce broken eggs
  3. Soft Egg Strainer: Strain soft eggs to get clean eggs at the end

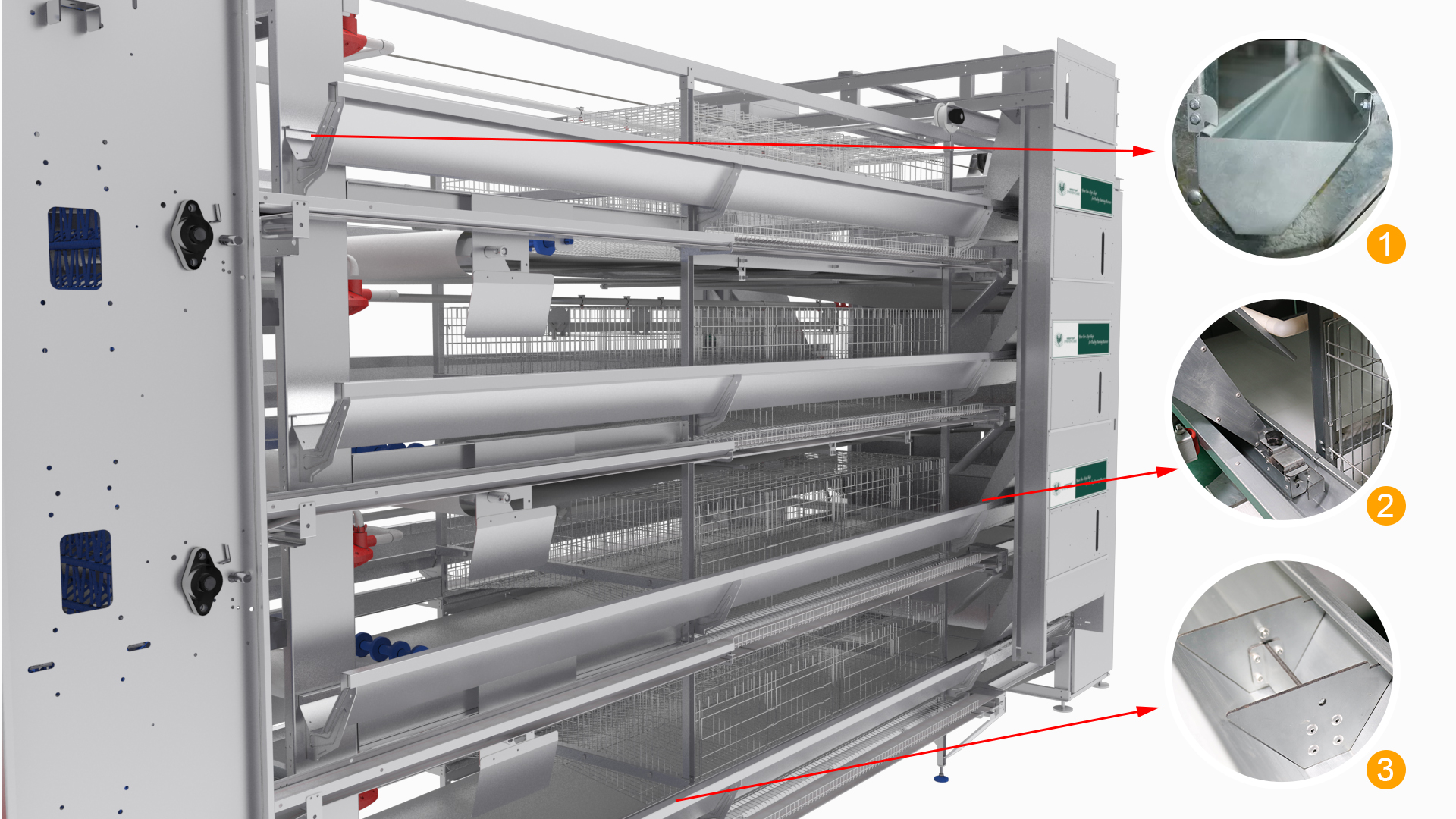

II.Saving Feed Cost

  1. Deep“V” feeder trough: Minimum feed losses
  2. Feed uniforming device: Give chickens uniform feed, so chicken weight is even, lay more eggs
  3. Feed returning device: Return feed back to feeder trough, save chicken feed

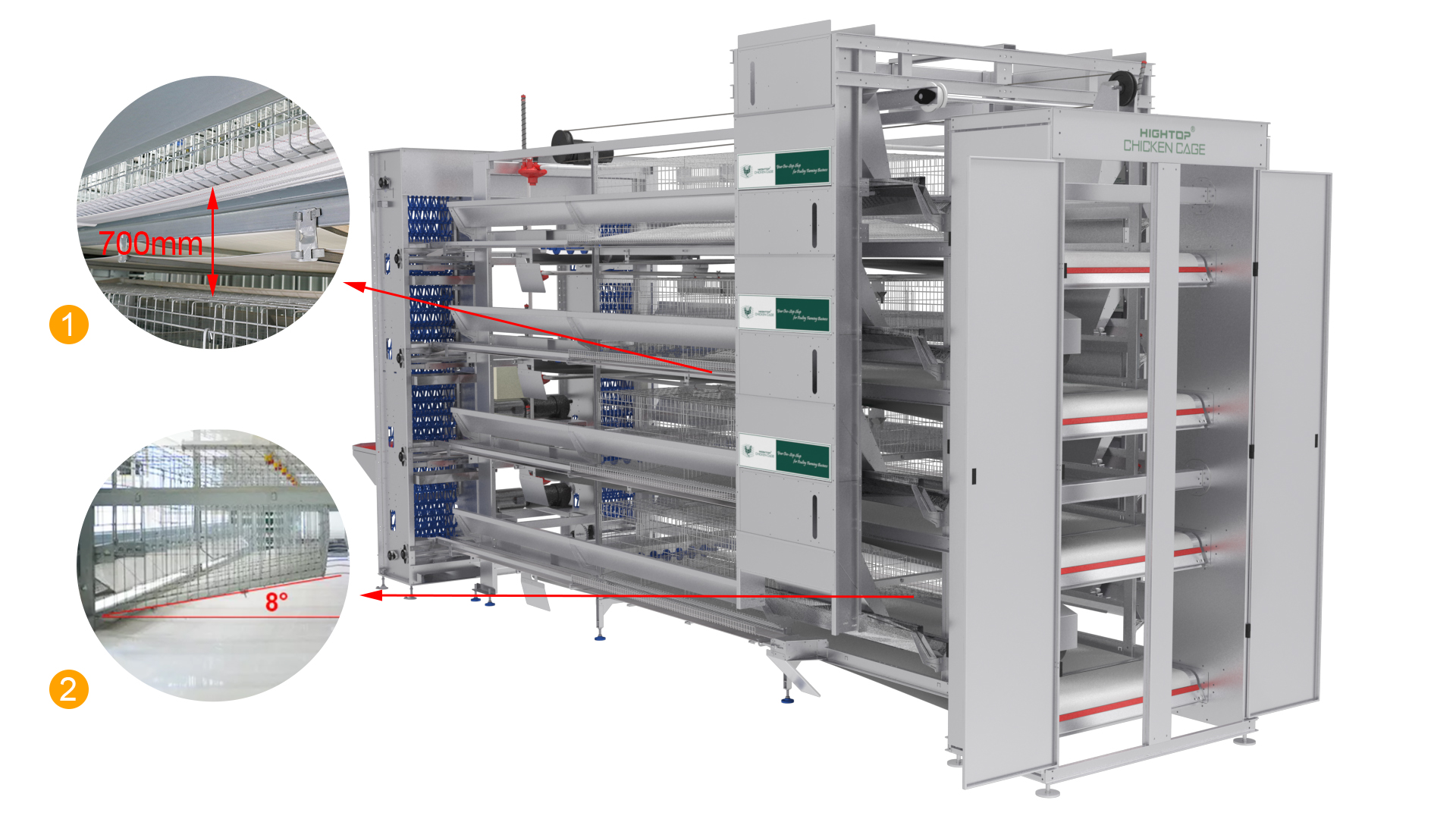

III.Clever Design Of Cage Mesh

  1. Higher cage distance with 700mm: Chickens won’t peck manure on the upper belt, reducing disease
  2. Bottom 8° beveled grid: eggs roll off gently, reducing the number of broken eggs

IV.High Quality

  1. Q235 High-Quality Steel Material from Brand
  2. Manufacturers: Stronger equipment and 20 years of service life.
  3. Numerical Control Process Technology: High precision, easy to install, operate smoothly.

4.Full Automatic System

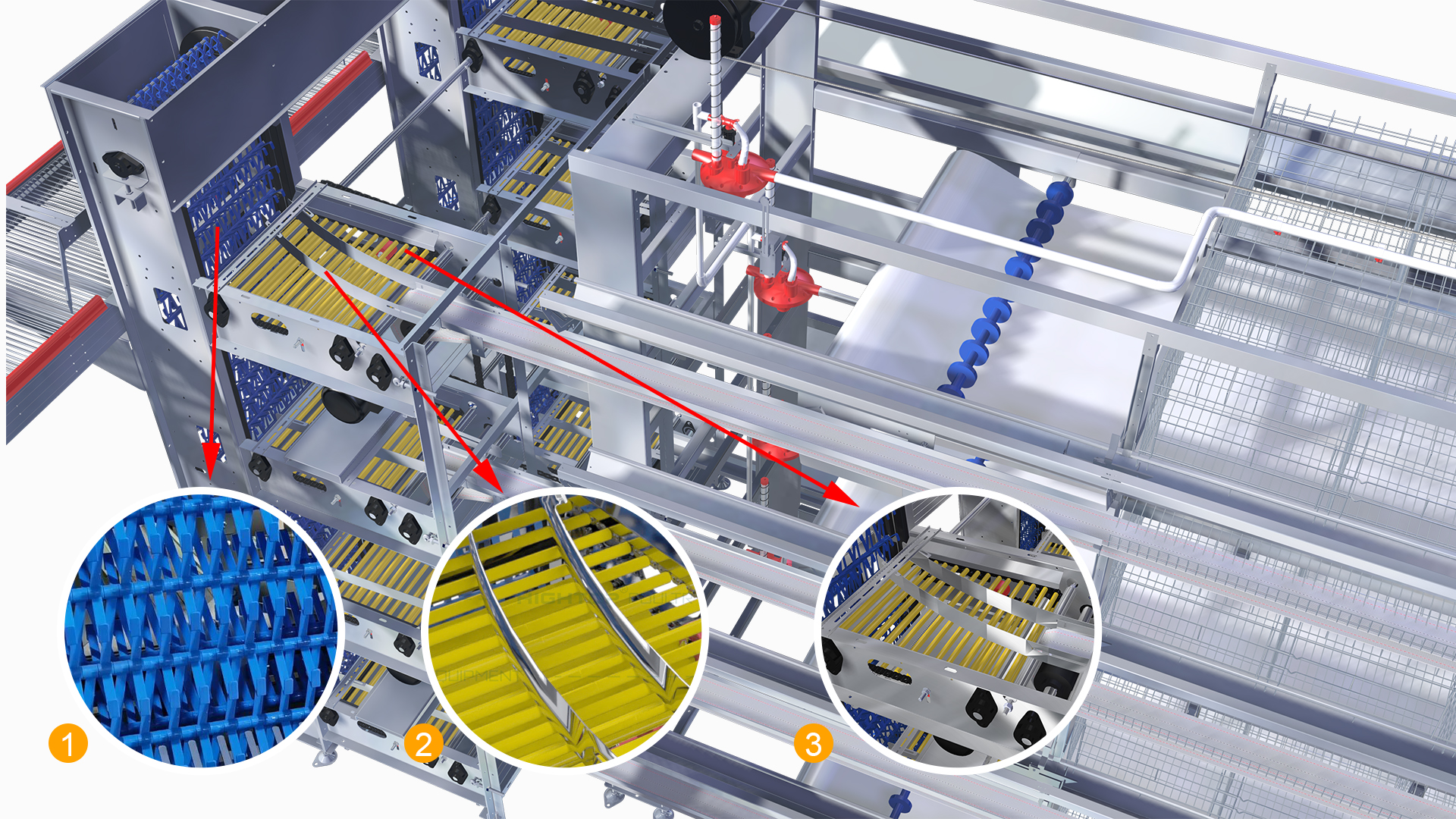

Automatic Egg Collection System

Automatic Egg Collection System

Automatic Feeding System

Automatic Drinking System

Automatic Drinking System

Automatic Manure Cleaning System

Automatic Manure Cleaning System

Environment Control System

Environment Control System

Silo

5. Drawing Of H Type Battery Cage Layout Specification

H-Type-Battery-Cage-4Tier-4 Rows Layout Design Front View

94(L)*13(W)*4(H), 35328 Birds/House

H Type Battery Cage 4Tier- 4 Rows Layout Design

H-Type-Battery-Cage-4Tier-4 Rows Layout Design side View

94(L)*13(W)*4(H), 35328 Birds/House

H Type Battery Cage 4Tier- 4 Rows Layout Design

H Type  Battery Cage Specification
Cage size Nos. of Door/cage Nos. of Chicken/door Nos. of Floor Capacity of one set of cage Area per head (sqcm) Length of the cage with frame Width of installed cage with feeding machine Height of installed cage with feeding machine
1950*450*410 5 4 4 160 438.75 2000 1760 3035
1800*500*410 4 5 4 160 450 1850 1860 3035
1800*600*430 4 6 4 192 450 1850 2010 3210

6. Turnkey Solution

turnkey solution

7.Our Certification

Supplier Certification

Supplier Certification

ISO9001

Date of certificate: June 5, 2022
ISO 9001(Quality Management System Certification)

PVOC

Date of certificate: 2017
PVOC(Pre-Export Verification of Conformity)

Contact Us

1 Step 1
keyboard_arrow_leftPrevious
Nextkeyboard_arrow_right
FormCraft - WordPress form builder

Related Products

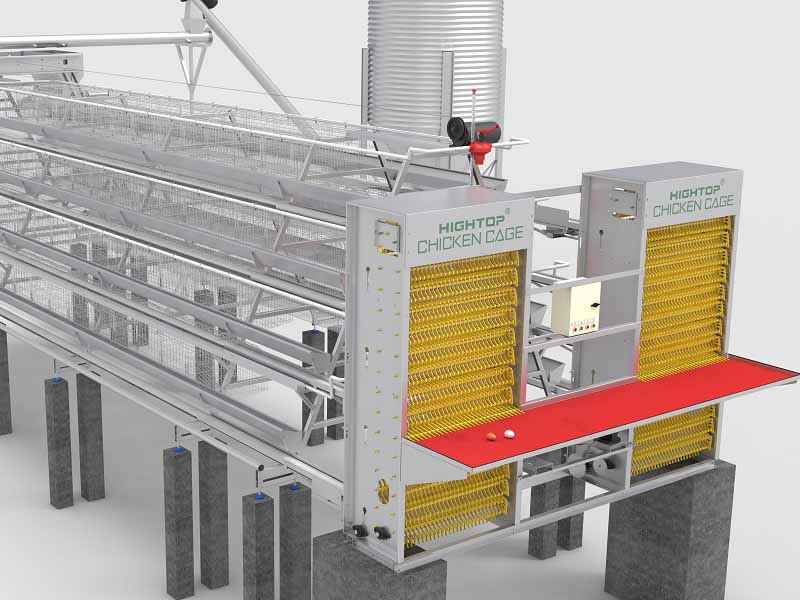

A Type Battery Cage

A Type Battery Cage
  • Applies to: closed house or open house
  • Life Time:20years
  • Tiers:3-4Tiers

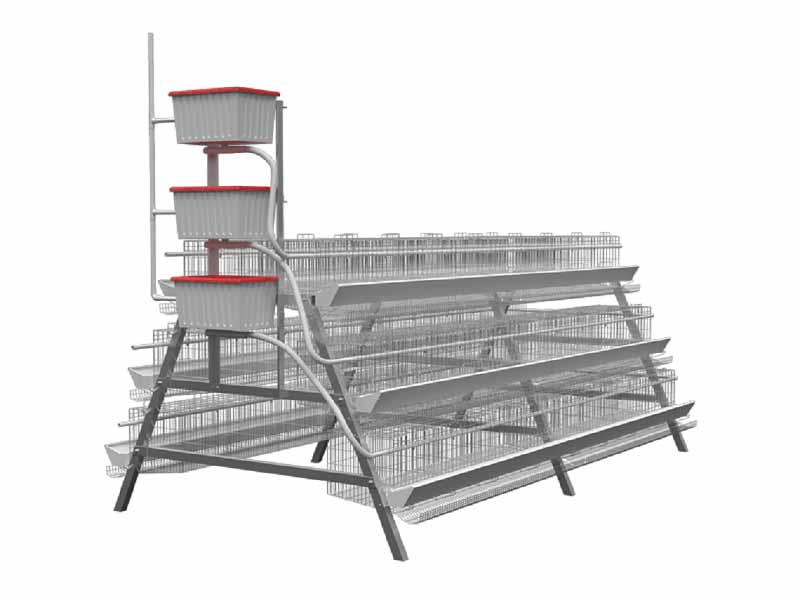

Layer Chicken Cage
