H Type Automatic Egg Layer Chicken Farm Laying Hens Poultry Battery Cages For Sale

H type battery cage system introduce

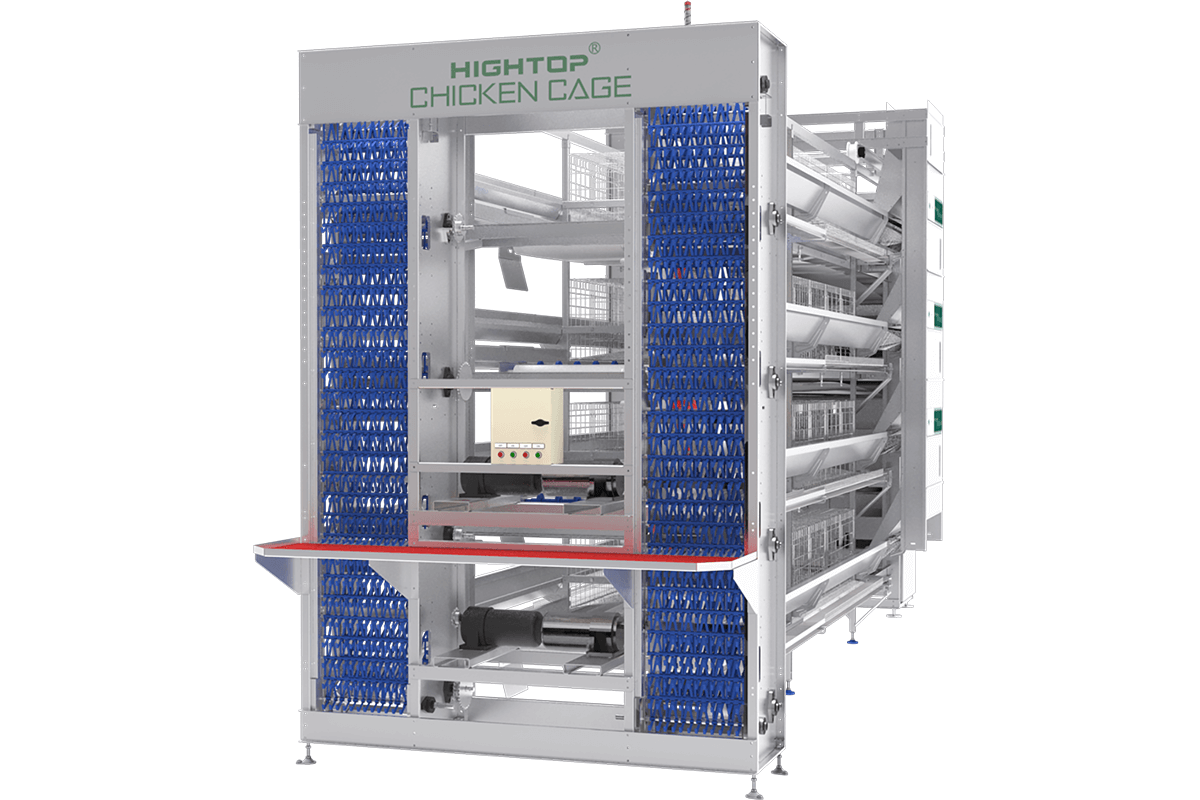

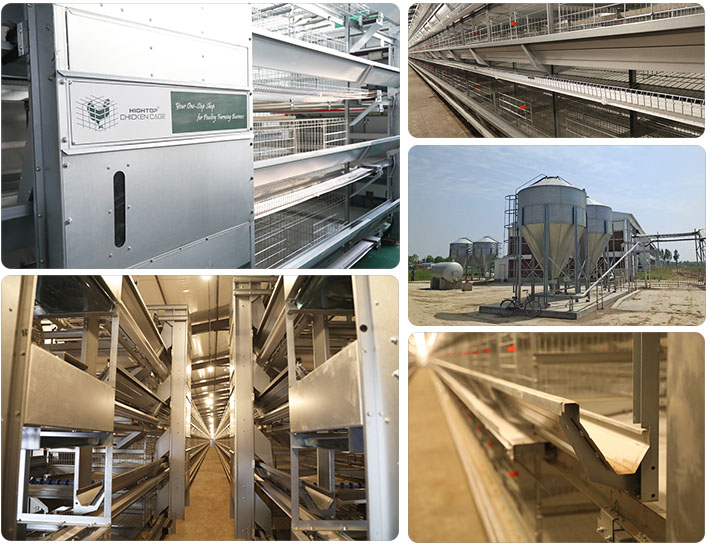

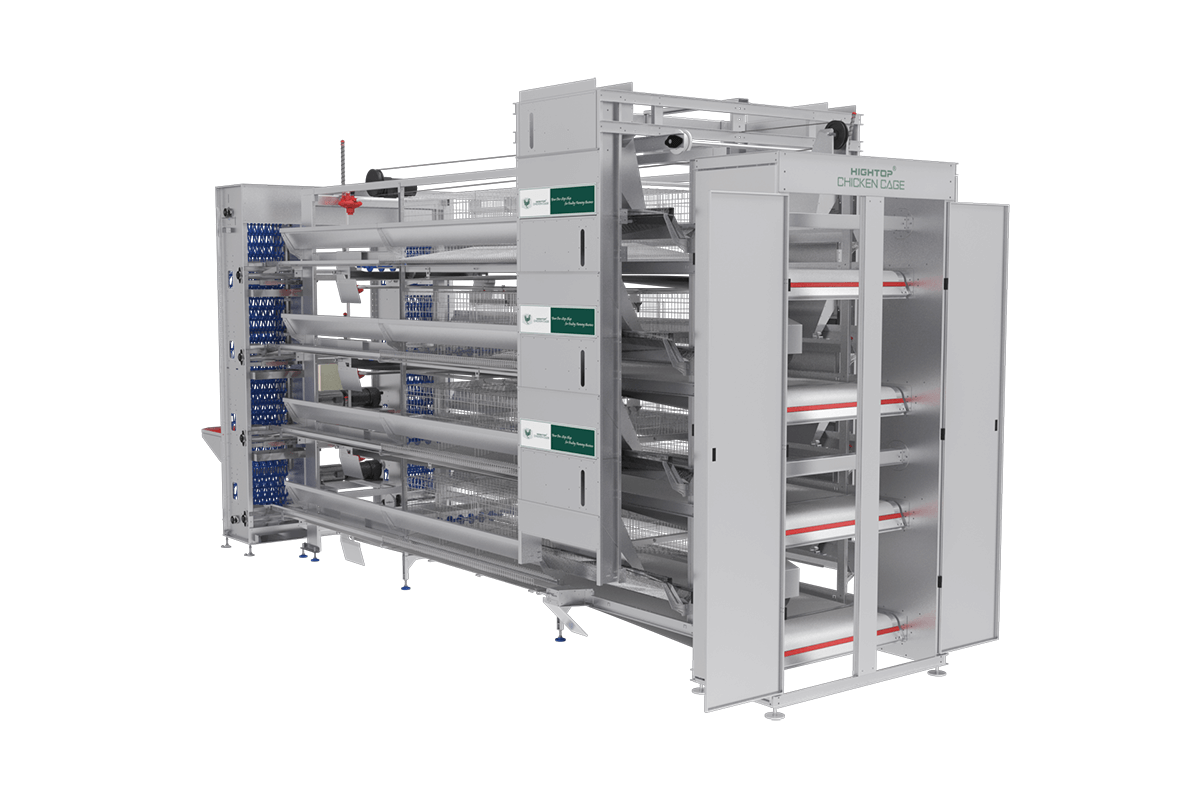

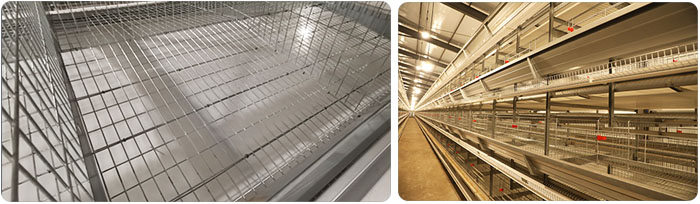

H Type Battery Cage Details

Material: Hot dipped galvanized, Q235
Life Time: 20 Years
Certification: ISO 9001, SONCAP, PVOC
Tiers: 4-8Tiers
Chicken House Depth:625 mm
Feeding Trough: Metal type
Water Pipe Shape: Square tube
Water Pipe Thickness: 3mm
Nipple Drinker: Cone valve

Why Choose HIGHTOP H Type Battery Cage

1. Advantage Of H Type Fully Automatic Chicken Equipment

2 to 5 Times Raising Quantity

2 to 5 Times Raising Quantity

  • 2 to 5 times higher capacity compared to A Type.
  • Suggested chicken capacity/house> 30000 birds.
  • Ideally suited for large-scale chicken farms.
Only one person manages

Only one person manages

  • Automatic feeding, drinking, and egg collecting.
  • Automatic remove manure
  • Intelligent control environment
  • Smart warning of environmental control problems.

Optimal Raising Results

  • Laying rates min  96%.
  • Eggs Damaging Rate does not exceed 0. 3%.
  • 20 years service life.

Upgraded to smart farm

  • Integrate all data of the farm.
  • Smart control the whole farm.
  • Inspect the chicken house at any time.
  • A timely reminder of environmental changes.

2. Choosing H-type or A-Type Automatic Chicken Equipment?

Automatic System Helps You Start Modern Farm Only Two Persons Are Needed To Manage One Building Save Labor Costs Create More Benefits

3. 2-5 Times Raising Quantity Than A Type Chicken Cages

Comparison of Chicken Quantity by Using A-type and H-type Cage

Type Tiers Capacity/Set Rows Sets/Row Total Chickens Increase Rate, %
Automatic A Type 4 160 3 42 20160
Automatic H Type 4 128 4 68 34816 72.7
5 160 4 68 43520 115.8
  • Here are two types of automatic chicken cages: A type and H type.
  • H-type battery layer chicken cages can save more land, reducing construction costs.
  • H-type automatic chicken cages can be made from 3-tier to 5-tier, according to your requirement.
  • With automatic feeding, drinking, egg collection, manure cleaning system, and environment control system, you just need 2 people to operate one large-scale farm!

4. How To Achieve Better Raising Profit by Using The Fully Automatic System

4.1 Reduce disease & mortality

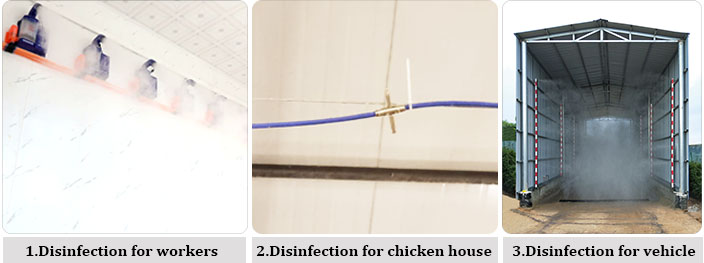

4.1.1 Reduce Disease Caused By Microorganisms-Disinfection System

Reduce disease and mortality by disinfection, so you can get more chickens survived and chicken eggs.

4.1.2 Give Chickens a Better Environment for Egg Production-Automatic Environment Control System

  • The whole system includes an exhaust fan, cooling pad, deflector, and air-inlet windows.
  • The exhaust fan and cooling pad can maintain an optimum temperature range(13″C -26″ C), the best is 22C. Proper temperature can improve the feed conversion ratio, and increase egg production.
  • Above 26 degrees, it will increase the difficulty for chickens to dissipate heat, which will lead to stress response and increase mortality.
  • Above 43″C, all the chickens will die. Exhaust fan and air-inlet windows make sure fresh air come in, and bring out harmful gas like ammonia gas, ammonia gas which will cause respiratory disease.
  • Deflectors change cool air direction, to prevent chickens from catching cold.

4.1.3 Reduce Diseases Caused by Fermented Manure-Clean Chicken Manure Automatically and Timely

  • Clean chicken manure timely can reduce ammonia gas that can cause chicken respiratory diseases, reducing mortality.
  • Clean chicken manure three times, ensuring the belt is clean.
  • The horizontal belt takes the chicken droppings out of the chicken house and the slanting belt can take the chicken droppings to the truck directly, so the whole farm has no bad smell and flies.
  • Bigger distance between each cage layer, making sure chickens won’t peck their droppings on the upper belt, reducing disease risk and mortality.

4.1.4 Give Chickens the Best Living Environment-Reasonable Cage Design

  • Higher distance space between tiers ensures good ventilation.
  • Higher distance space between tiers prevents chickens from pecking the manure belt, reducing the risk of intestinal diseases in chickens.
  • Big nest, meet international area standards, give chickens comfortable living space.

4.1.5 Supply Chickens With Clean and Sufficient Water-Automatic Drinking System

  • 24h provide fresh water, 360-degree nipple drinking system, no water lack, the chicken will get enough water.
  • Smart waterline systems are available: auto water supply, alarm of water shortage, auto pipe cleaning, and auto medication.

4.1.6 Give Chickens Clean and Uniform Feed-Automatic Feeding System

  • Silo: weighing device is available, so you record daily chicken feed consumption, to make adjustments to feed quantity for getting even chicken weight.
  • Feed uniform device: ensure the uniform feeding of chickens and weight uniformity, reducing the mortality rate.
  • Chicken feed returning device: save chicken feed
  • Closed-type feed hopper, making sure clean feed

4.2 Increase Egg Production

4.2.1 Give Chickens Proper Temperature-Automatic Ventilation System

4.2.2 Give Chickens Proper Lighting-Automatic Lighting System

  • Red light can prolong the peak egg-laying period.
  • Light controller system: Intelligent control of light time and light color.
  • Poultry special light, flicker-free light.

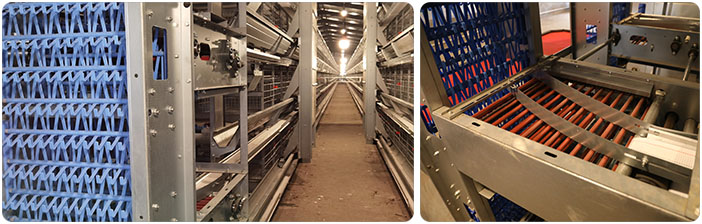

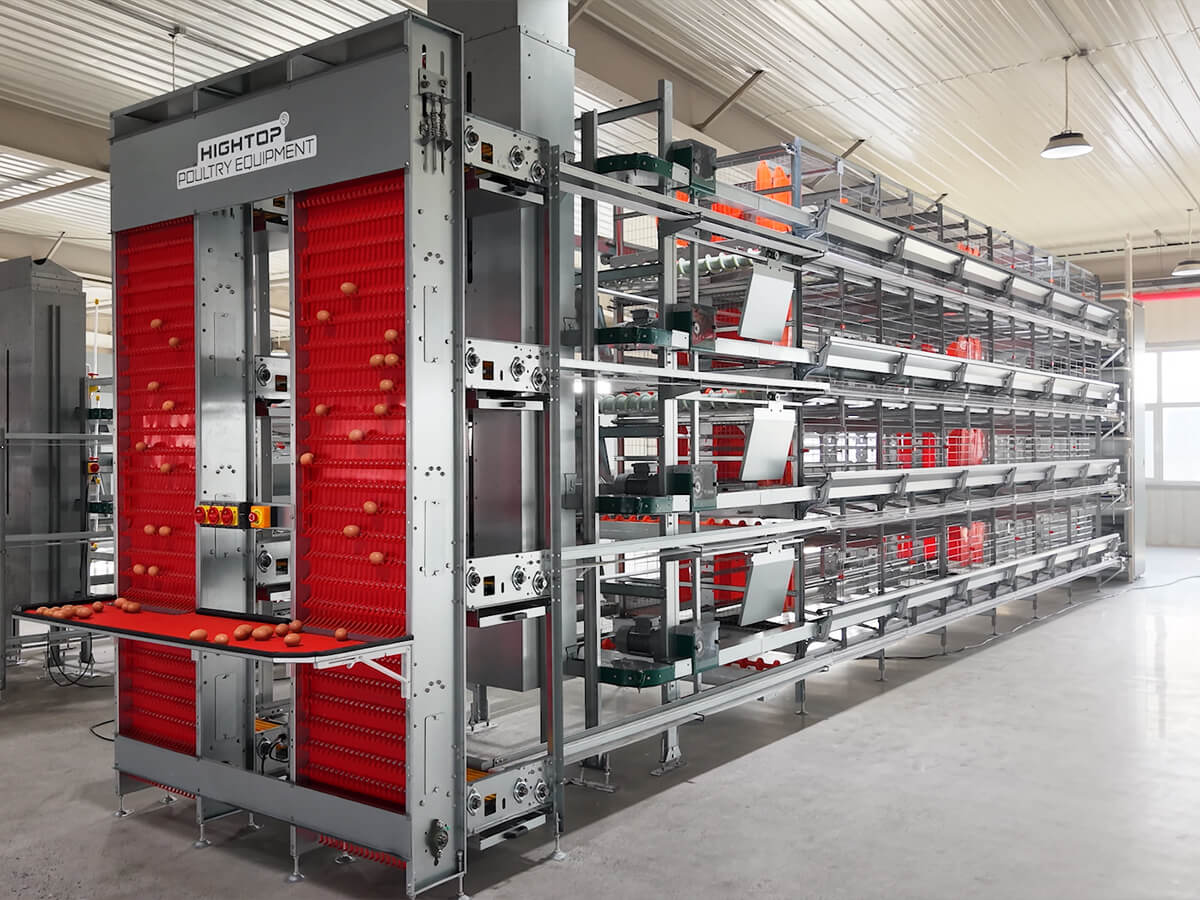

4.2.3 Reduce Egg Broken Rate-Automatic Egg Collection System

  • High-quality egg belt: strong, durable, good resistance to acid and alkali, water, and bacteria. Reduce egg broken rate and keep eggs clean.
  • Soft egg filter: filter soft eggs, making sure you get clean and qualified eggs at the end.
  • L-type egg catcher: Avoid eggs piling up and falling off, reducing the rate of egg breakage.
  • Egg collection guide: eggs are uniformly distributed on the elevator egg collection device, reducing egg collisions, and improving efficiency.
  • Brush: clean the dirt on the belt.

5. Best Service From Start To The End

turnkey solution

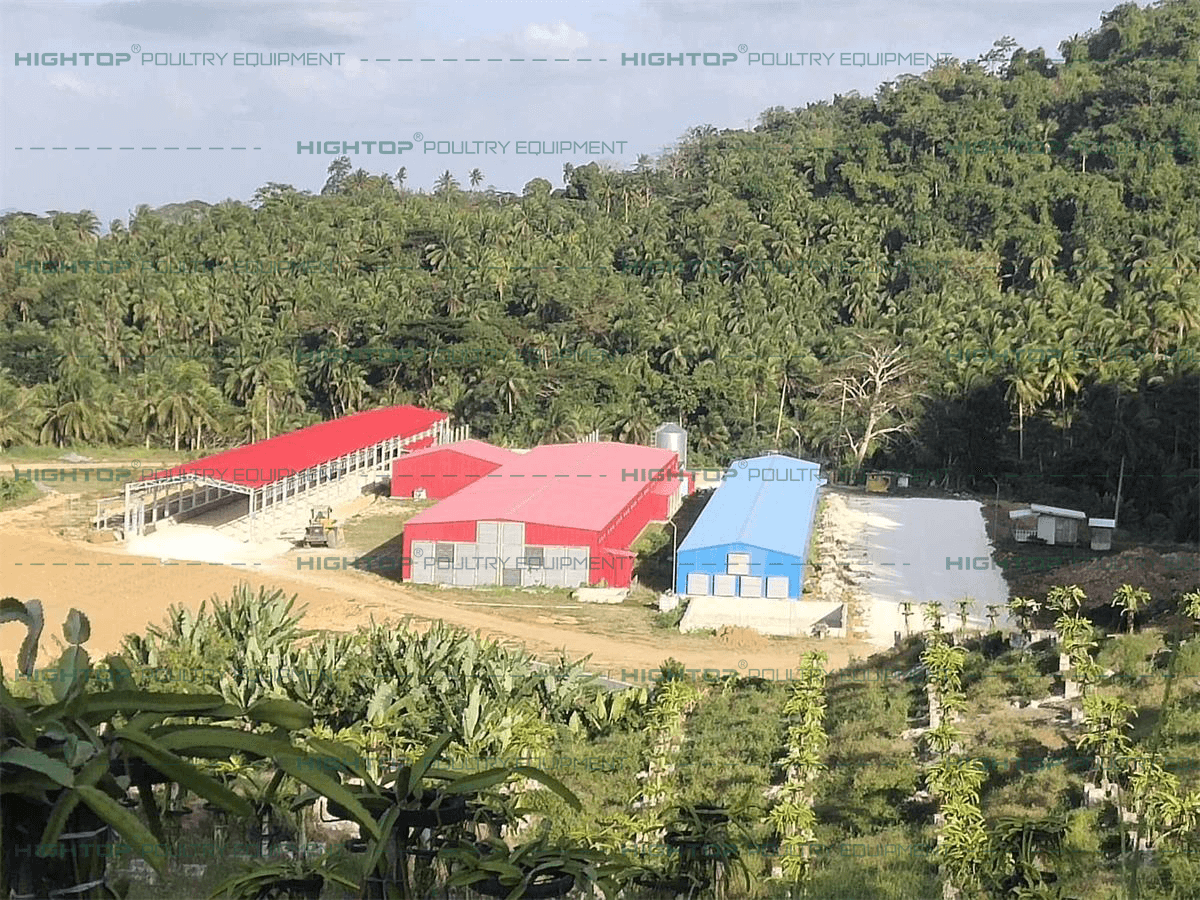

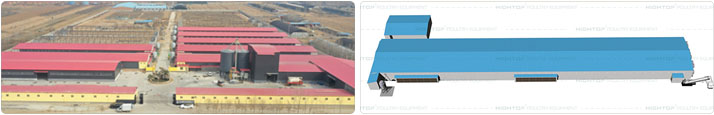

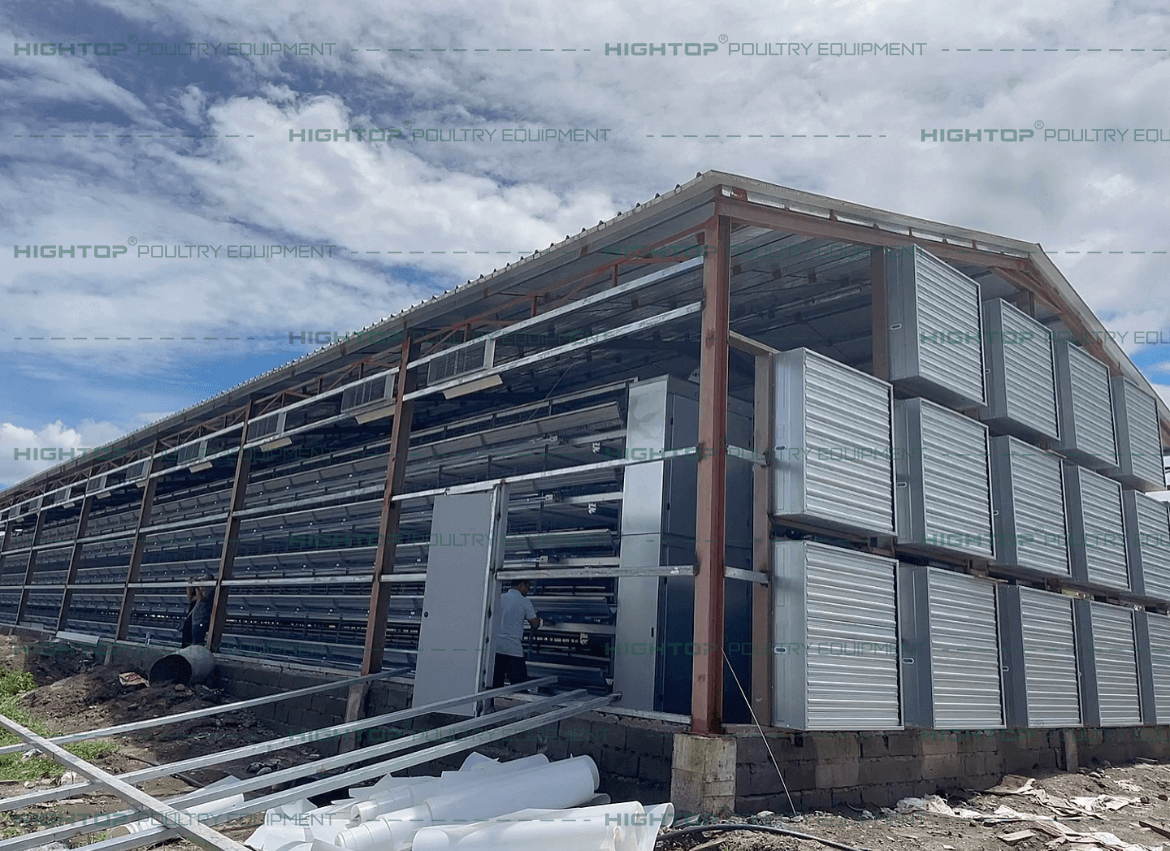

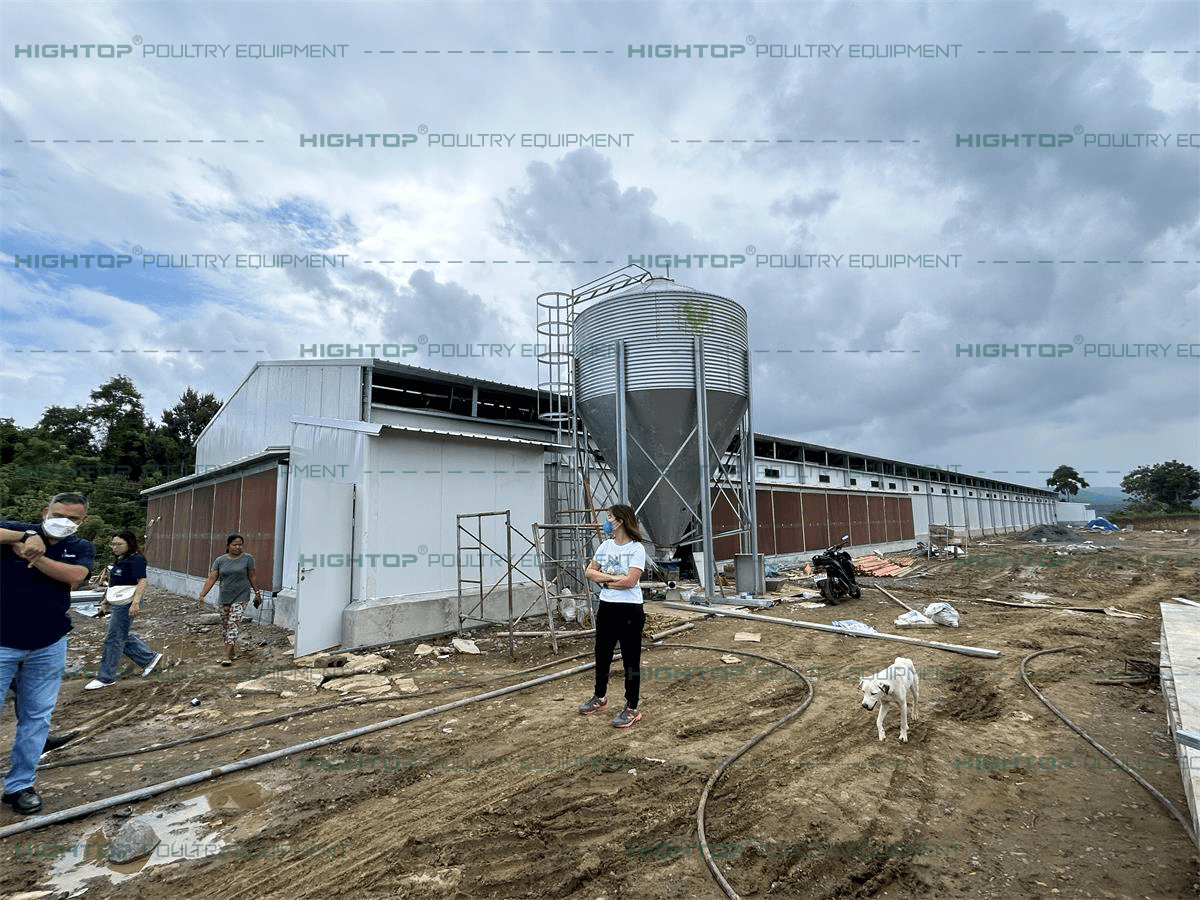

6.Hightop Projects

7.Hightop Certificate


Welcome to visit more details through our 720°view of the chicken farm with 1,000,000 layers.


Our fully automated poultry farm equipment is only for medium and large chicken farms with 5,000+ birds, If you own a small farm, automatic battery cage system is not cost-effective, you can use our common chicken cage.

We can ship our equipment to Philippines, Malaysia, Indonesia, Thailand, PNG, Africa, America, etc. Please feel free to contact us.
