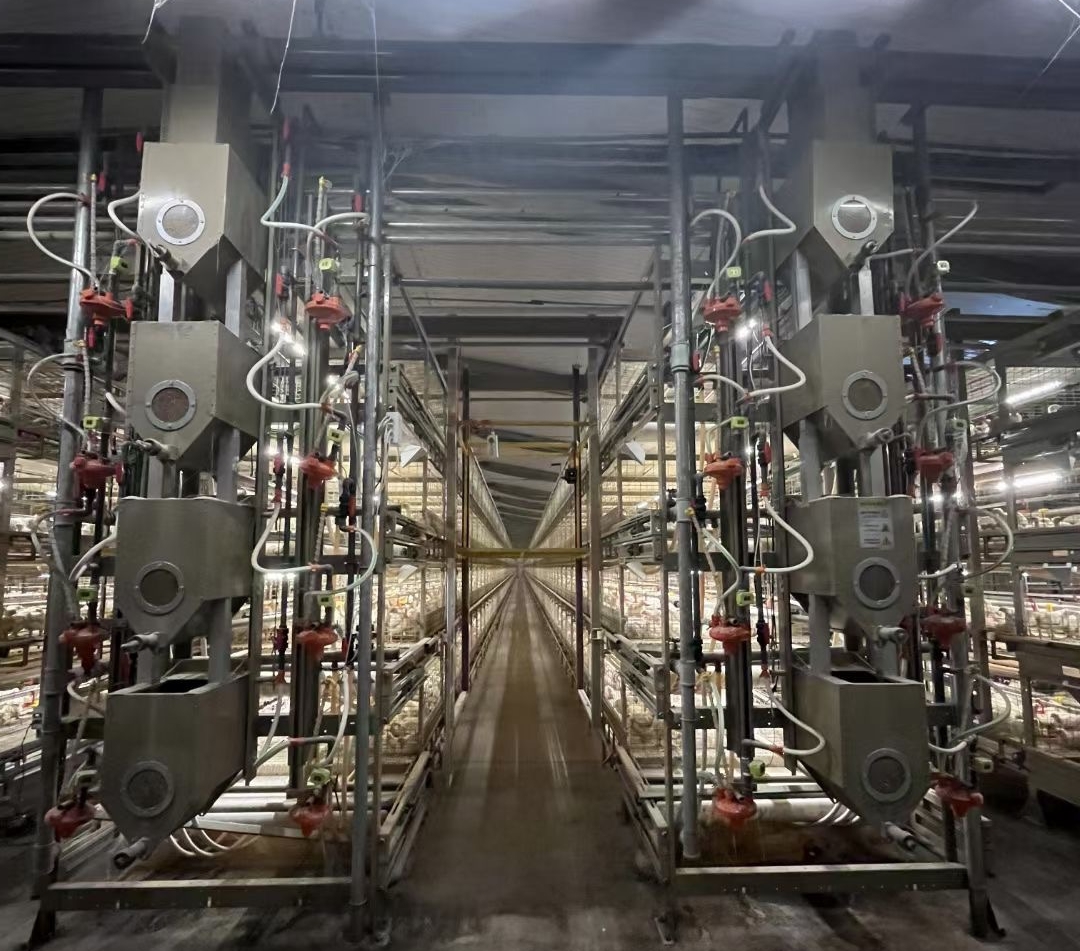

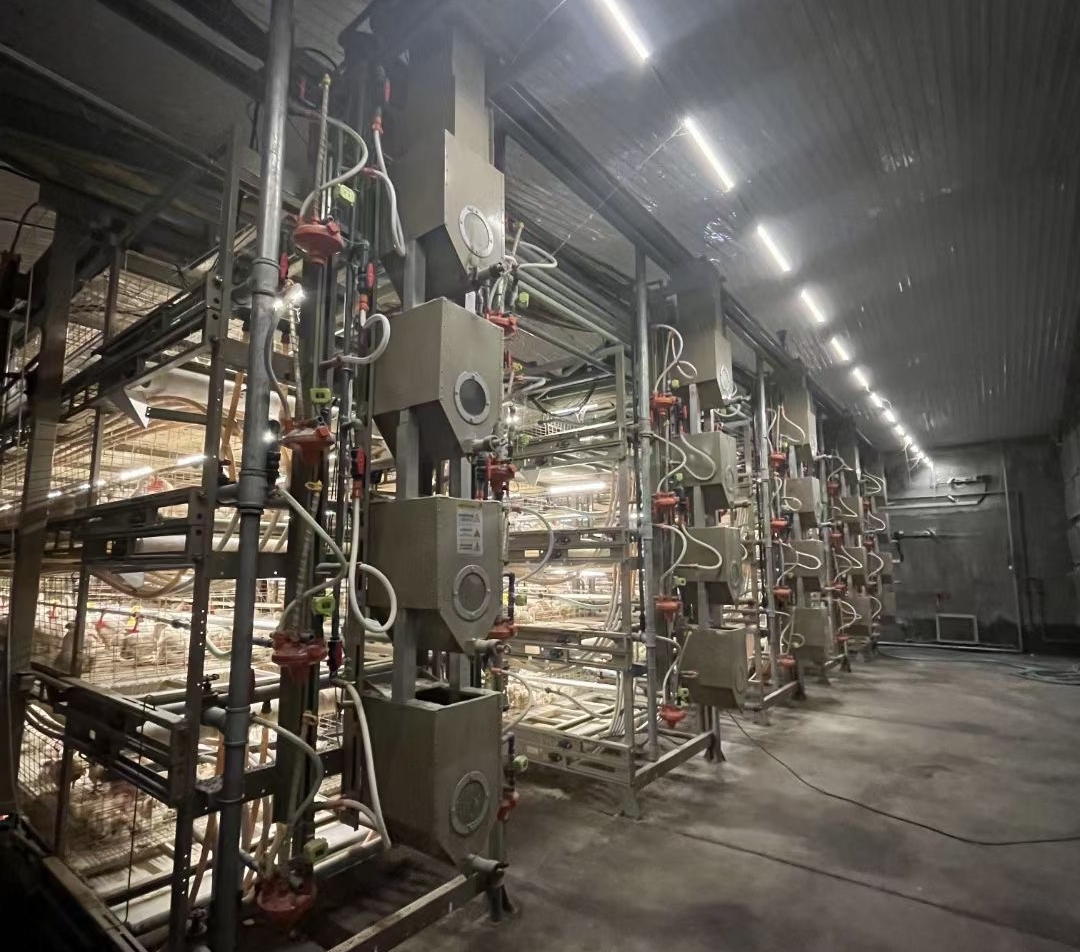

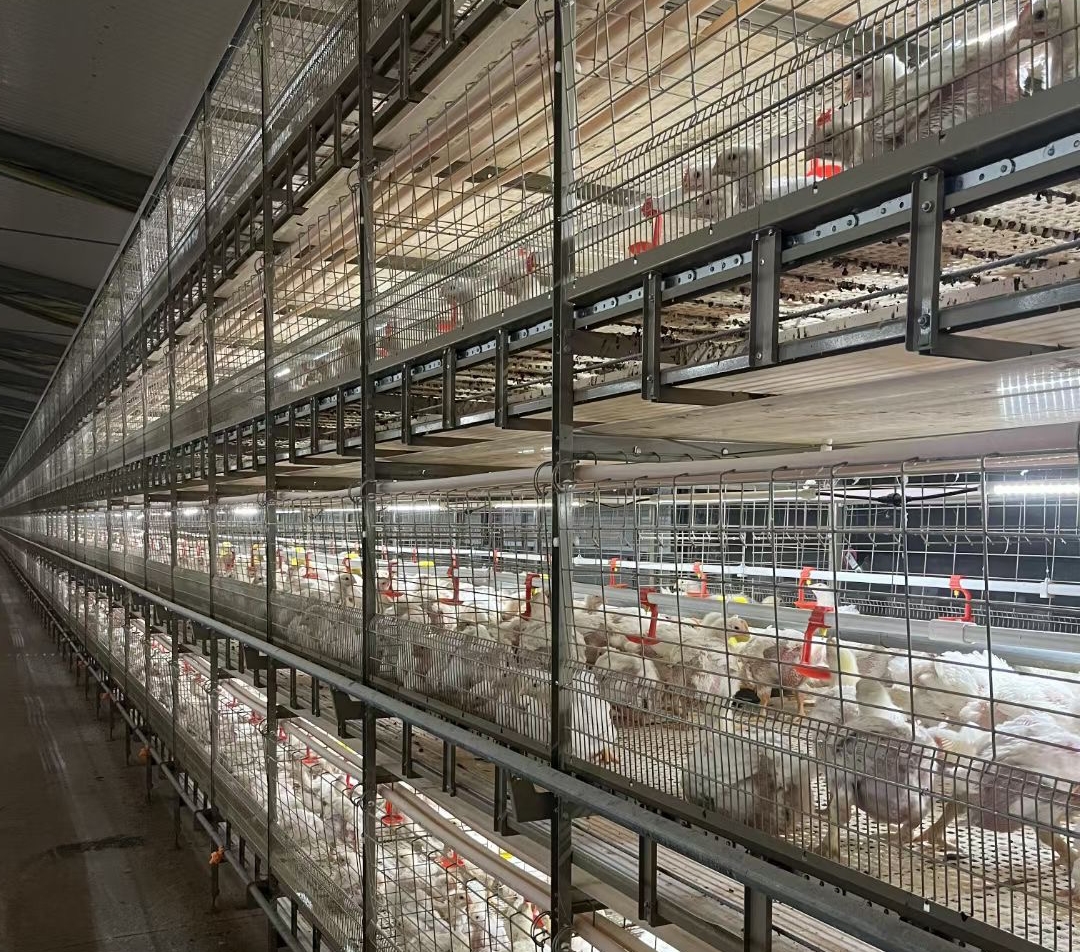

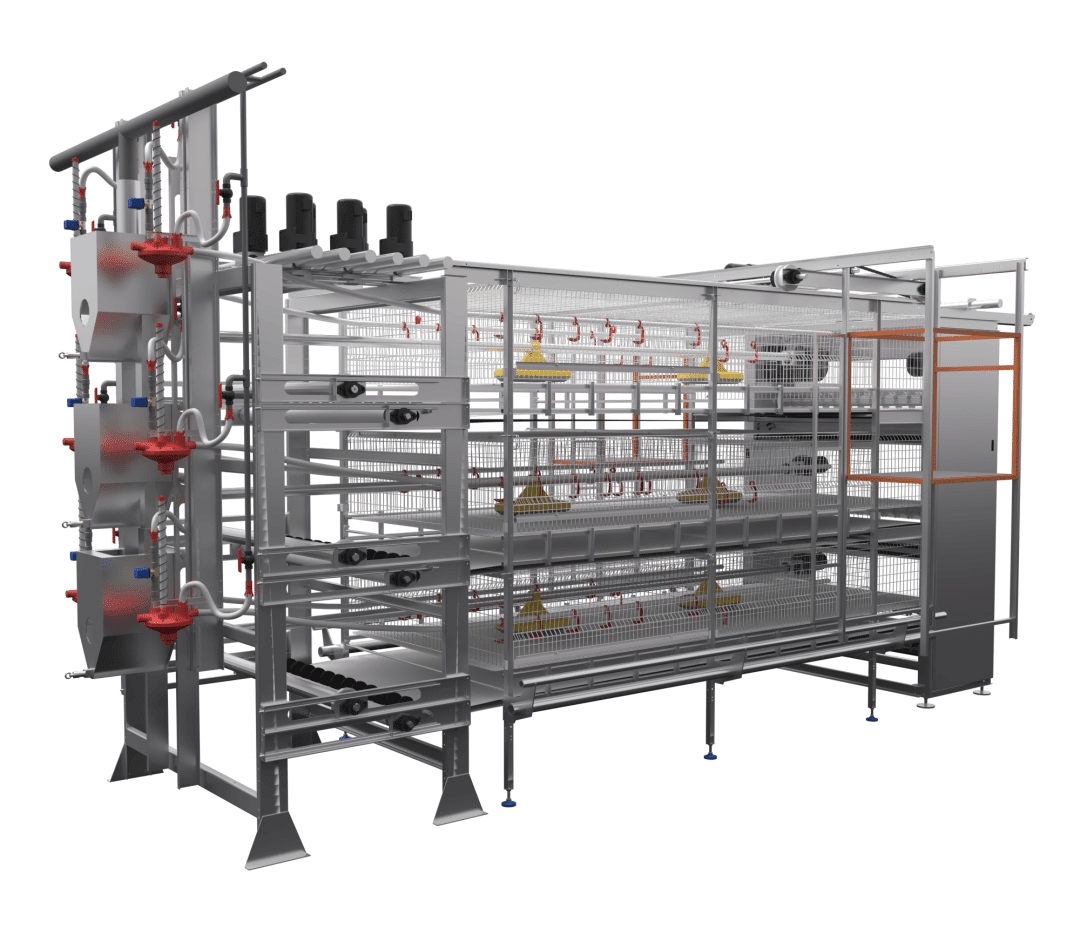

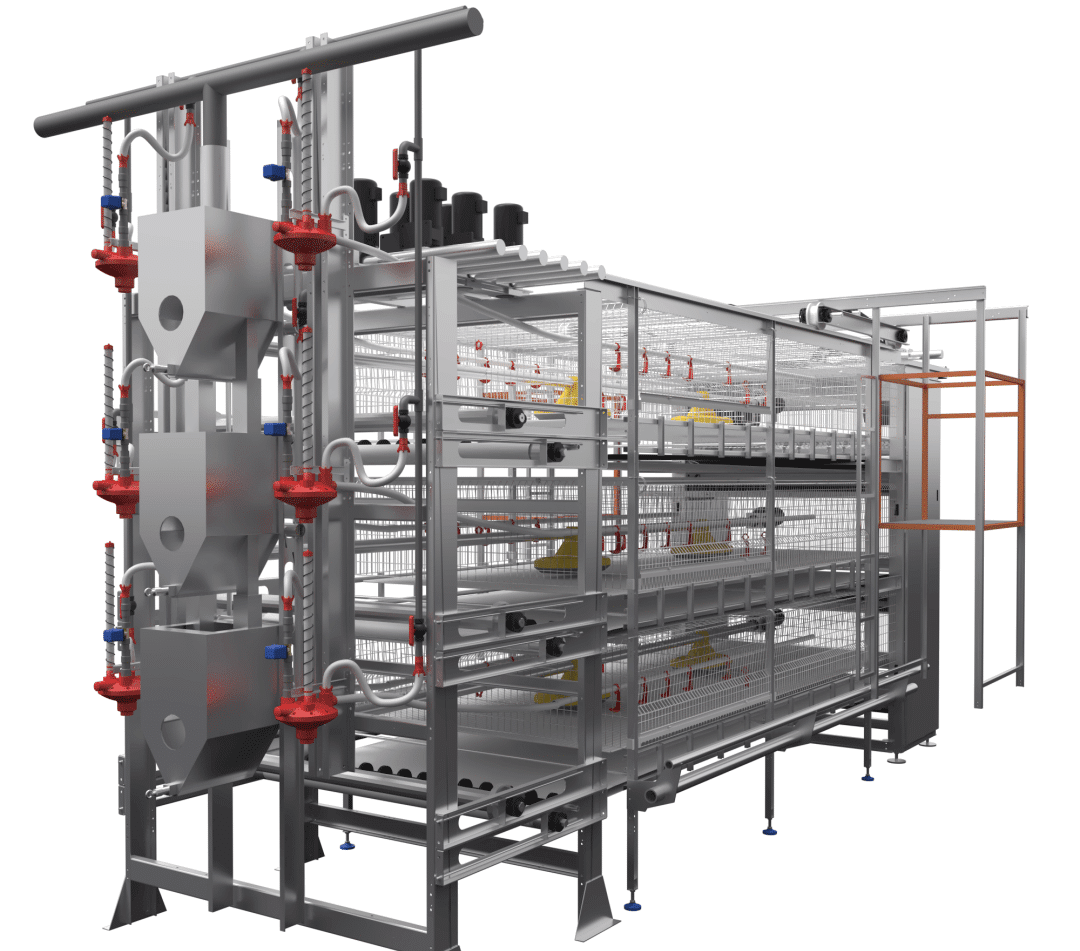

New Chain Type Harvesting Broiler Cage
The automatic broiler cage comes in two types: the pull-out slat type and the New Chain Type Harvesting Broiler Cage. Both cage systems are equipped with automatic feeding, manure cleaning, and broiler collection functions.
The new chain type harvesting broiler cage, also known as the automatic harvesting broiler cage, not only offers fully automated rearing but also fully automated broiler harvesting. During harvesting, the side mesh of the cage rises while the bottom mesh begins to convey the chickens. The birds are then transported to a transverse conveyor located at the end of the cage, which moves them outside the chicken house. Workers outside the house collect the birds using a catching disc, effectively reducing labor demand and minimizing injury rates during the harvesting process.
Dive into the future of poultry farming with our latest video, showcasing the marvels of the new chain-type broiler cage.
Chicken House Design Drawing

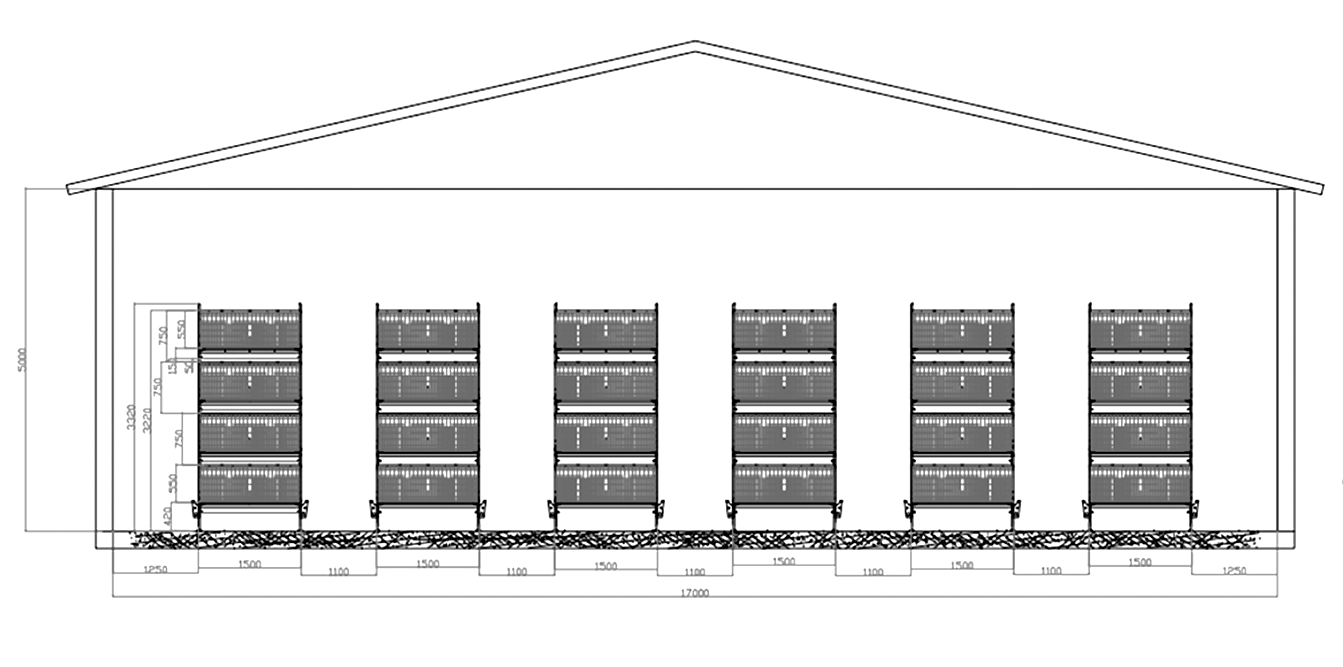

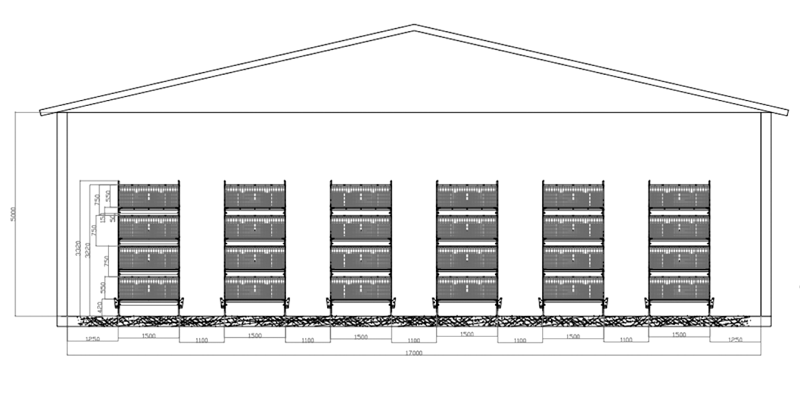

chicken house cross-section

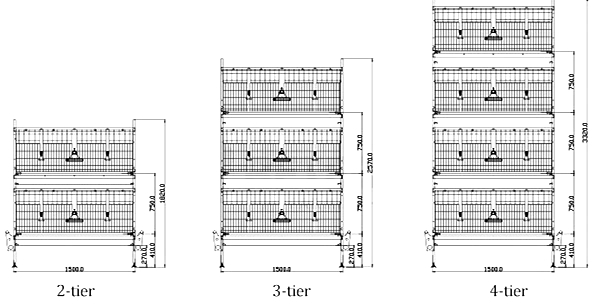

cage size
Recommended Coop Size and Number of Chickens
| Building size recommend | |||||||||
| Recommend building size | Chicken quantity | Cell length(mm) | Cell width(mm) | Cell height(mm) | raising areas(cm²) | Number of birds per layer | |||
| 91*17*5.2m (4-tier cage) | 60000 (2.5kg bird} | 3300 | 1500 | 550 | 495 | 100-125 | |||
| 98*17*5.2m (4-tier cage) | 81000 (1.8kg bird) | 3300 | 1500 | 550 | 495 | 100-125 | |||
Product Details

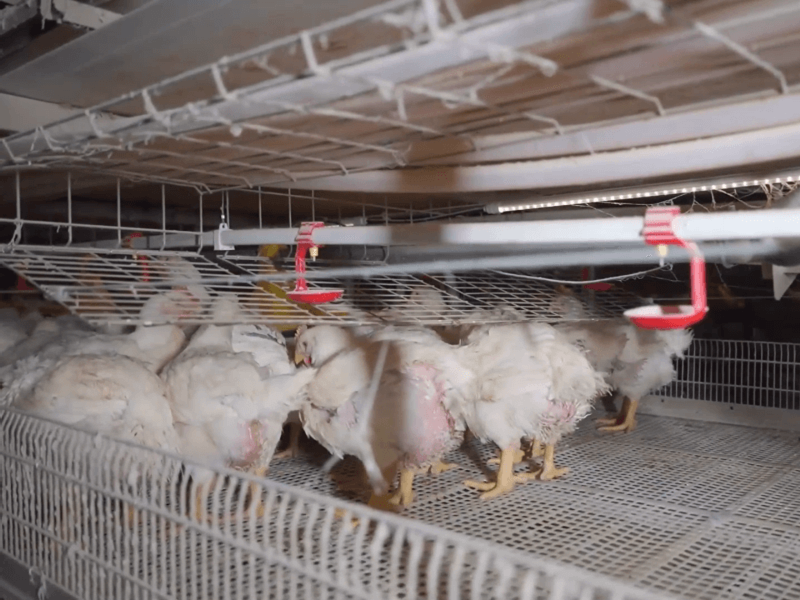

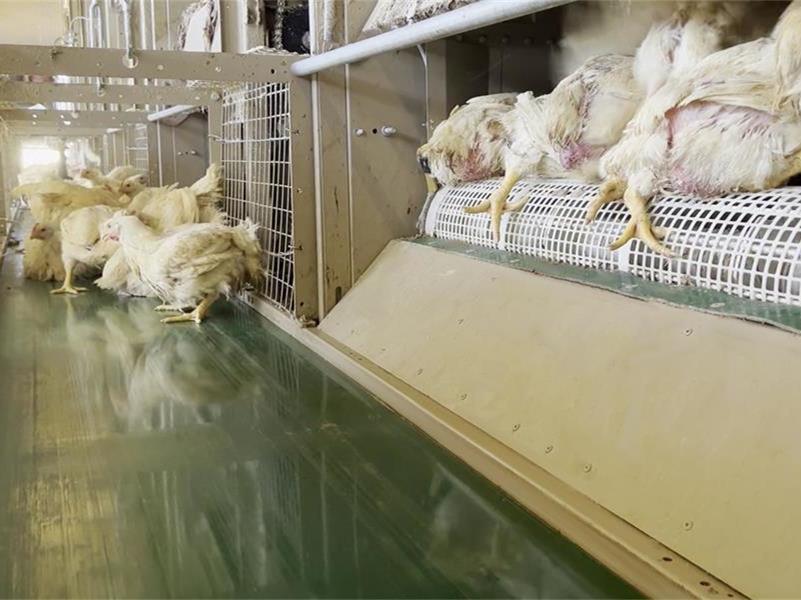

Automatic Harvesting
- Chain type of conveyor ensures more gentle harvesting, reduces damage of chickens
- Fully automatic harvesting
- lifting system at the final part can transport chickens from each tier outside the house

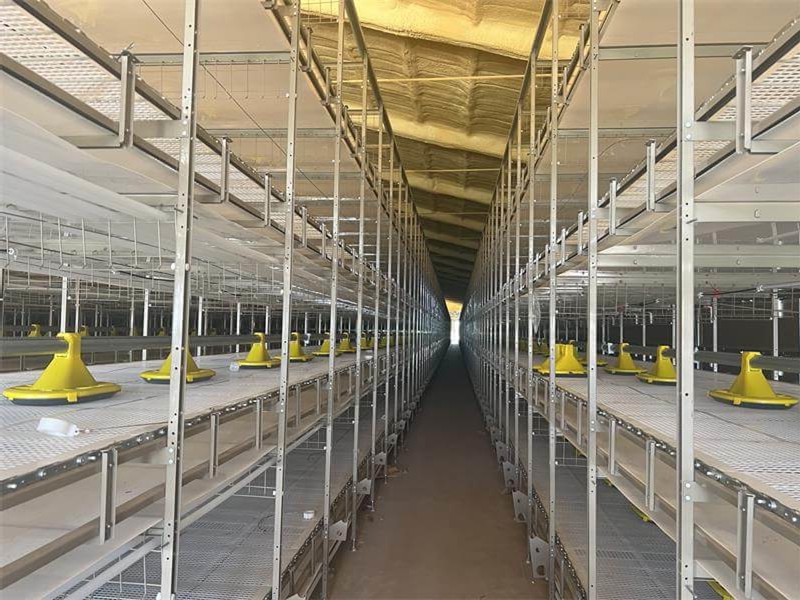

Cage and Frame
- Stong cage mesh: Q235 carbon wire for cage mesh, stronger tensile strength, 15-20 years lifespan
- Strong cage frame: 2mm thick U-type cage frame, more stable to support chickens
- More anti-corrosion: 275gsm zinc coating + painting, make the surface more anti-rust in the corrosive environment

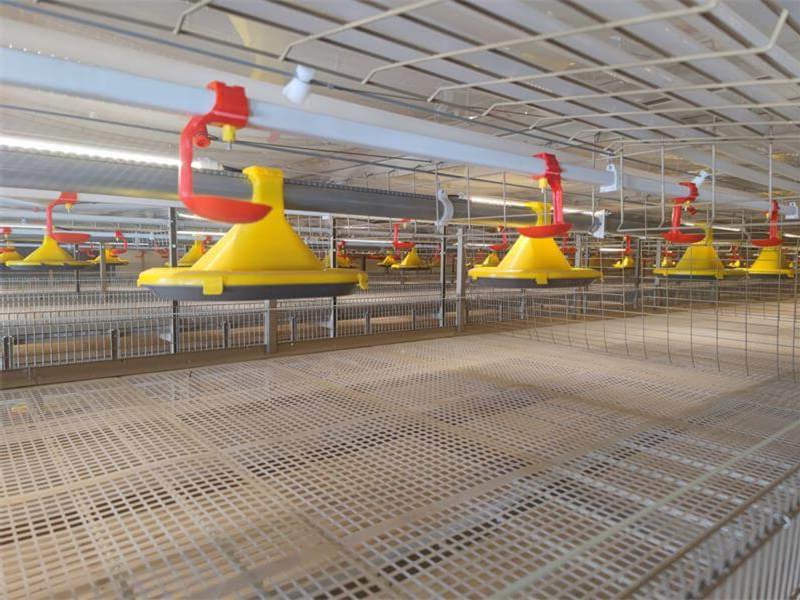

Drinking System
- The lifting system for every water dispenser allows chickens to drink at the correct height
- Two different water supply lines are placed in each cage with 8 to12
- 360° water supply of the nipples
- Supply doser and pressure gauge

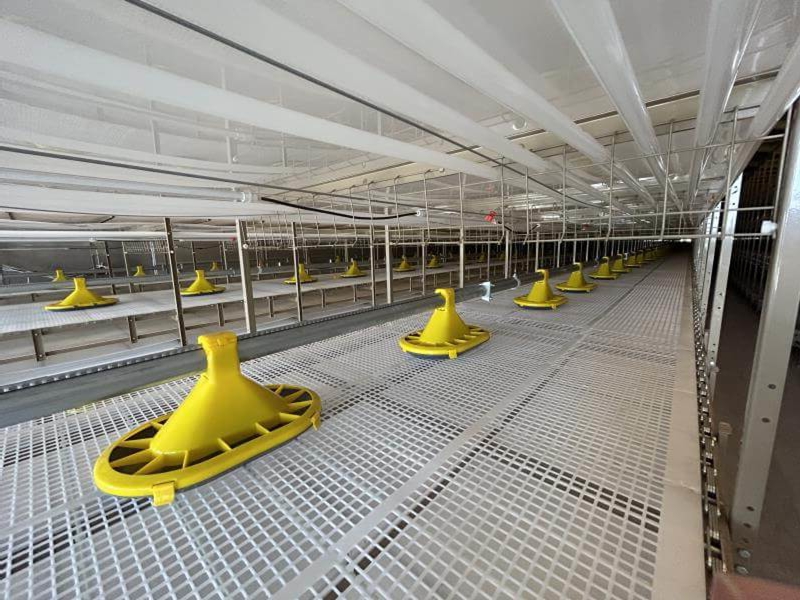

Pan Feeding System
- Lifting system of pan feeding line allows chickens to eat at the correct height
- Feed sensor: IFM®
- Feed pipe: hot galvanized
- Spiral: imported from South Africa

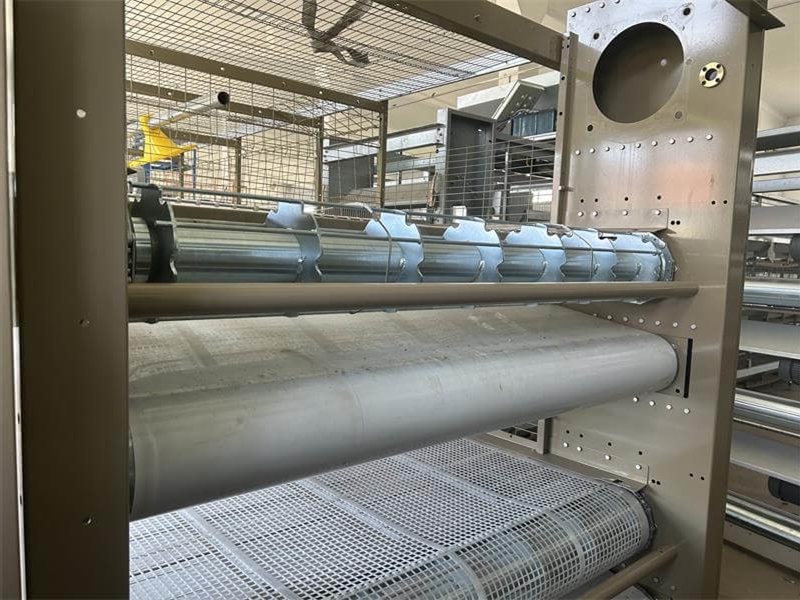

Manure Cleaning System
- PP belt, 1.2mm thickness

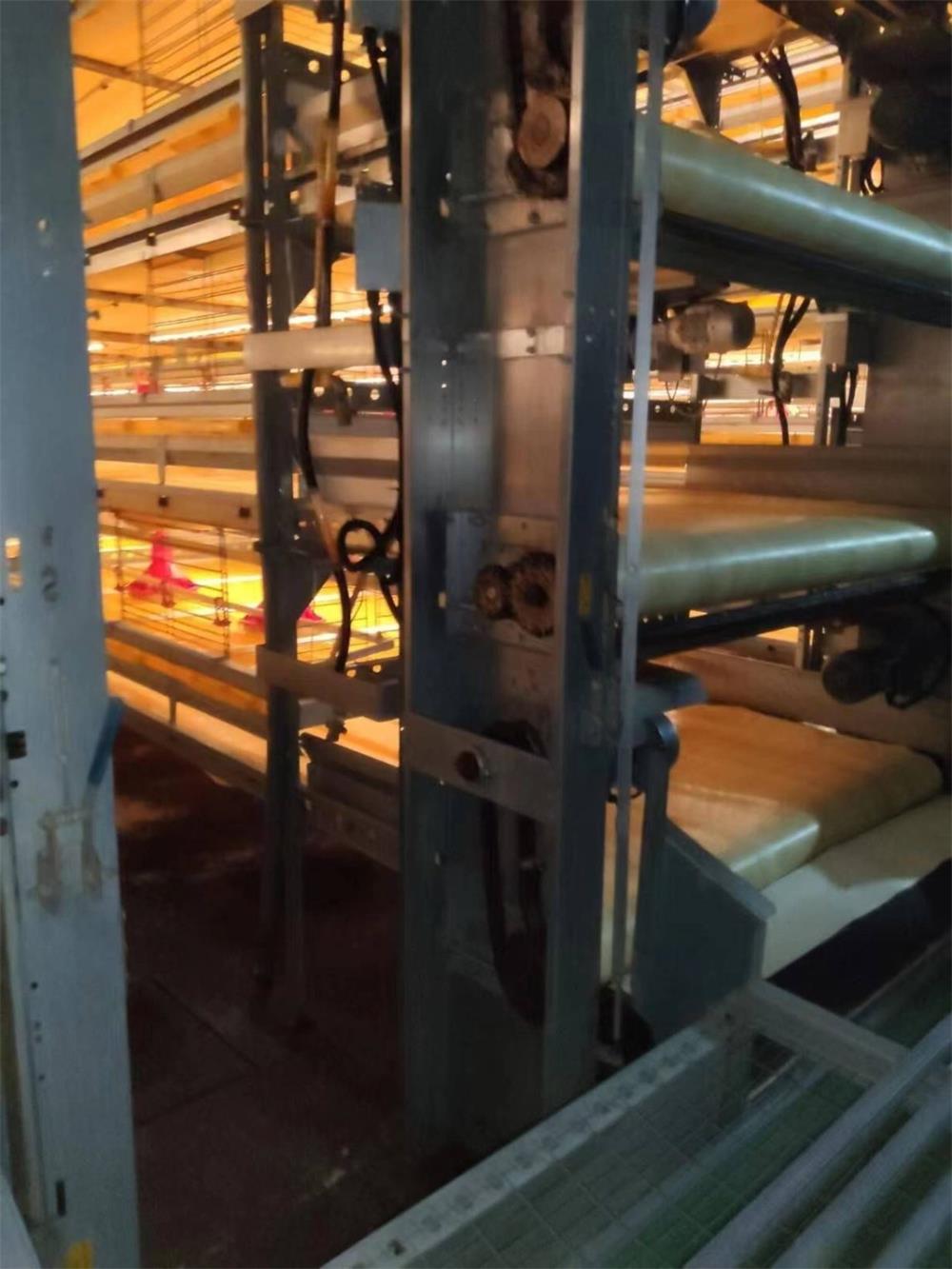

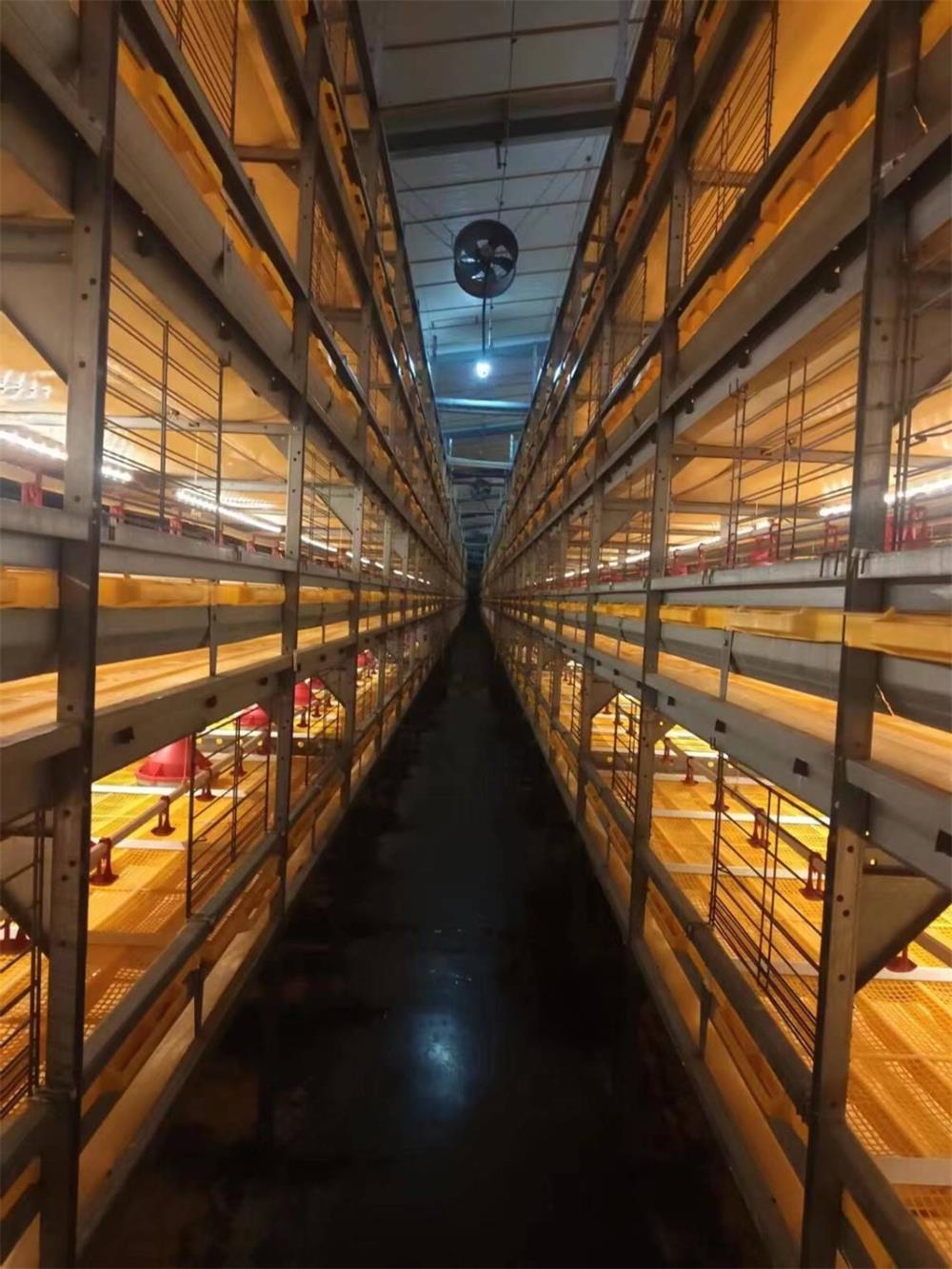

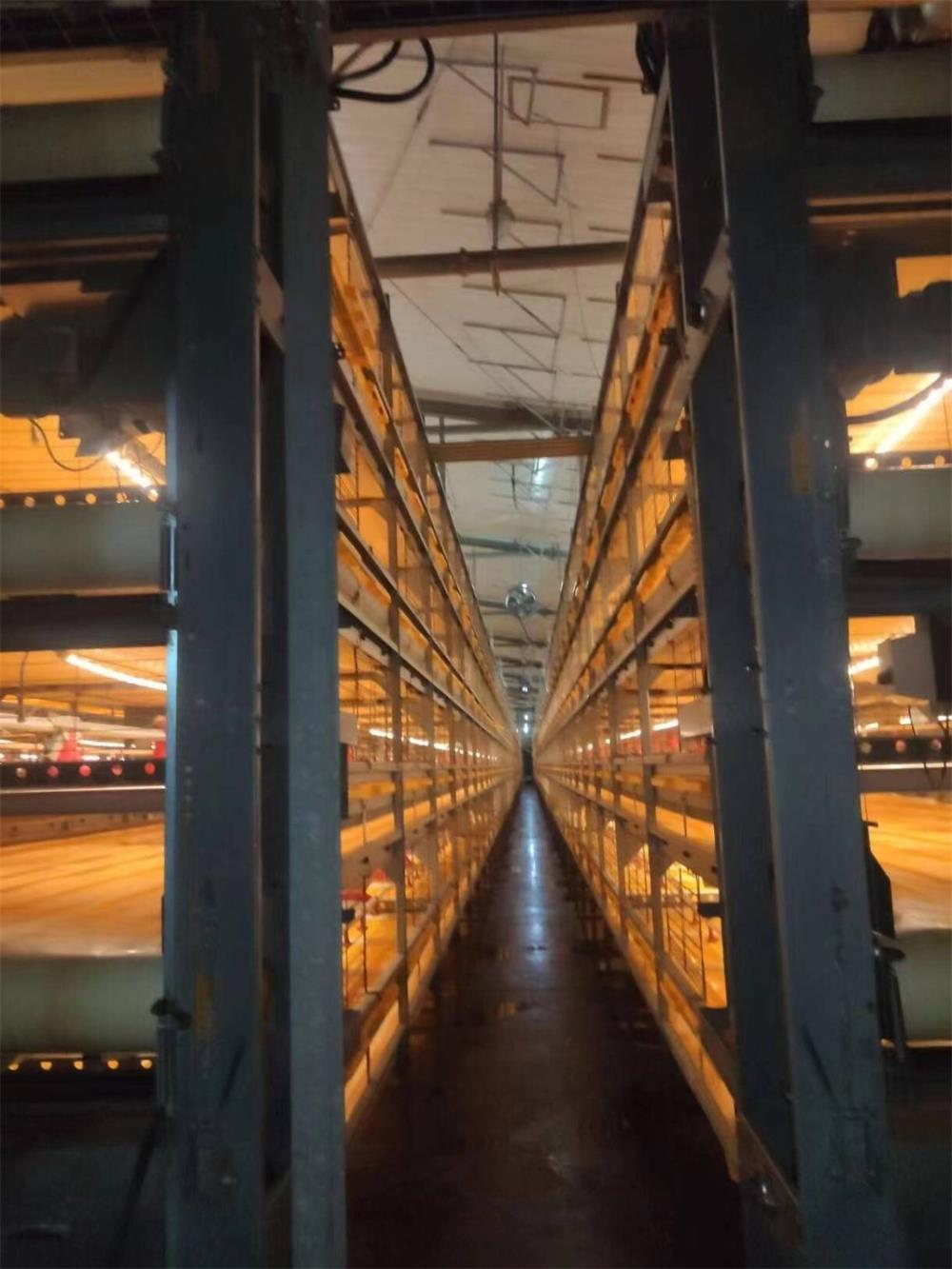

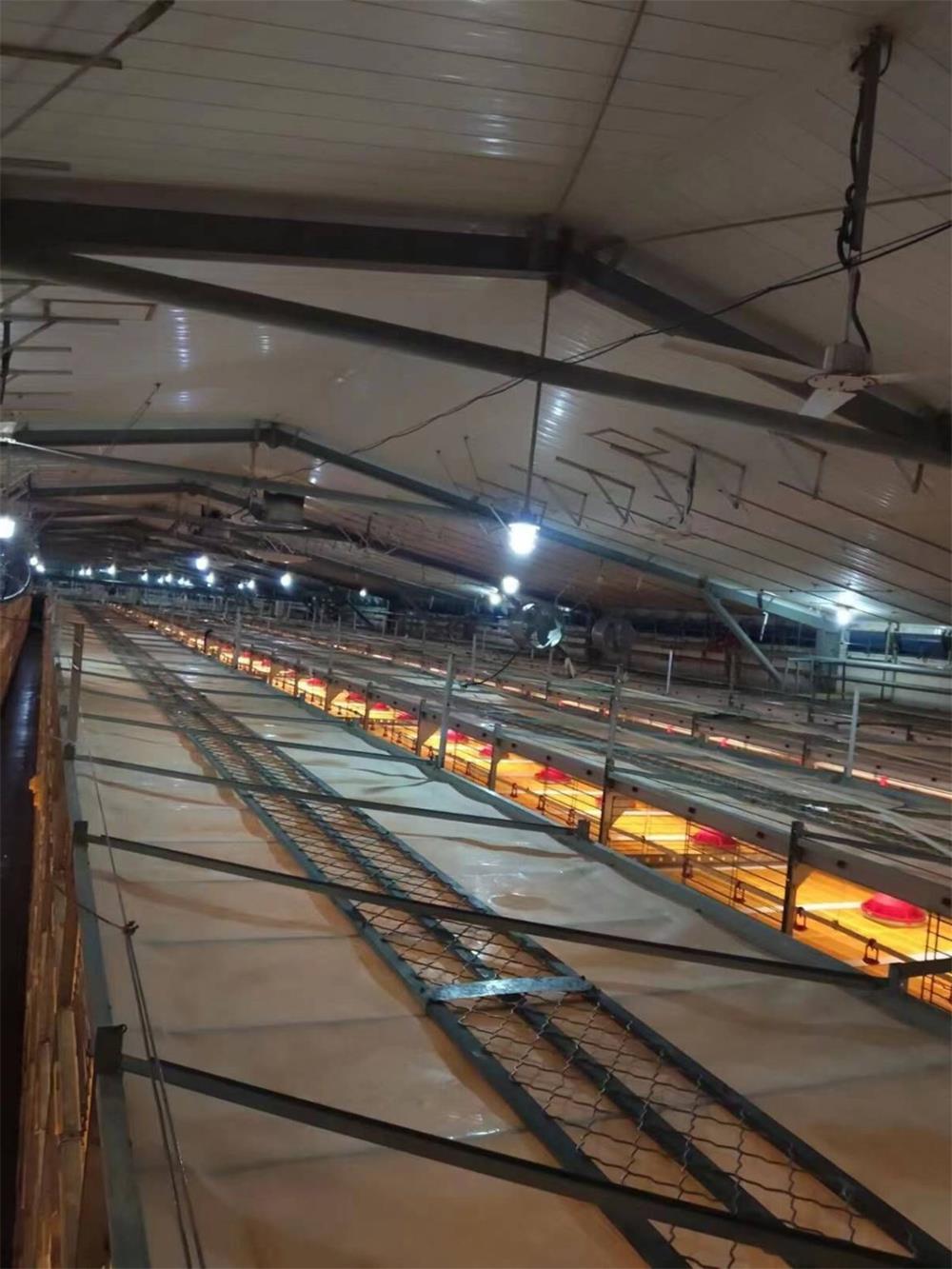

Real Shot of Chicken House
