Small & Large Capacity Egg Incubator

Hightop Poultry Equipment provides quality hatching egg incubator (for chickens, ducks, gooses, etc.), we also have them in stock ready for delivery, buy now and get the extra gift.

Inquire Now

Modern egg incubator is electrically heated and the temperature is controlled with a thermostat. They are mainly used in large chicken poultry facilities rather than small privately owned farms.

Broadly speaking, chicken egg incubator may be divided into three major classes:

  1. Setter Incubator
  2. Hatcher Incubator
  3. Combination Incubator

Differences between Egg Incubators

With setter incubators, the egg trays and hatching box of the incubator are separated. When the hens lay, the eggs need to be moved to the lower hatching box for the chicks to hatch. For batch hatching, eggs are moved to the bottom hatching box in the hatching incubator when they are ready to hatch.

Combination incubators enable the farmer to keep chicks on each tier because the egg tray is together with the hatching box. These are similar to setter and hatcher incubators, but they have more space to keep the chicks once they have hatched. If you want one-time hatching, then you it is best to choose the combination incubator with hatcher so that you can keep the chicks in each of the tier hatching boxes without moving them.

How to Use the Egg Incubator

  1. Fill up the kettle and water tank with hot water.
  2. Put the kettle on the furnace. This may be fired with gas, liquefied gas, or some other energy source.
  3. Connect the heating pipe to the incubator and kettle as shown in the picture below.

small sized egg Incubator

Small Sized Egg Incubator

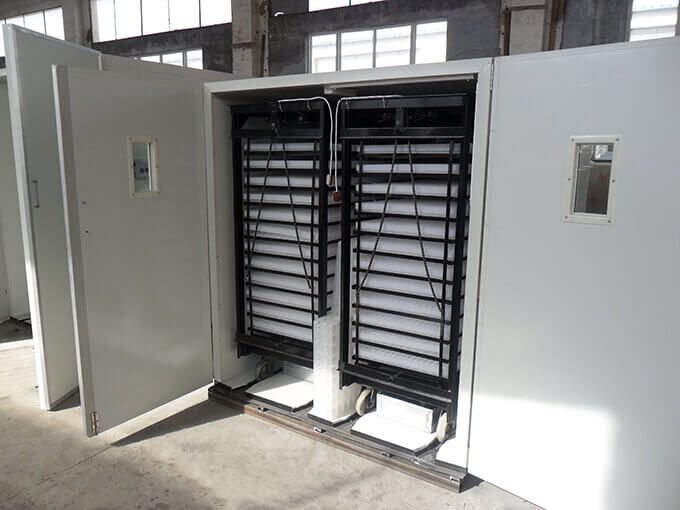

Large Capacity Egg Incubator

Large Capacity Egg Incubator

Features of our egg incubator

  • Digital display of temperature, humidity, and turning frequency
  • Fully automatic temperature controlling
  • Fully automatic humidity control
  • Fully automatic egg turning
  • Fully automatic alarm system
  • Fully automatic cooling and ventilator systems
  • Backup emergency system
  • Microcomputer that makes each incubator completely automatic
  • Hatching rate of more than 98%
  • Combined incubators feature the setter and hatcher incubator together in one unit
The model of poultry incubator we can provide
Net weight
Gross weight
L x W x H (m)
HT-363636361441000.0866.50.51 x 0.3 x 0.53
HT-48482424481000.0866.50.51 x 0.3 x 0.53
HT-727272722881600.1168.590.51 x 0.43 x 0.53
HT-888863322211000.3723280.77 x 0.56 x 0.86
HT-96964848961600.1168.590.51 x 0.43 x 0.53
HT-176176128644421000.4126320.77 x 0.56 x 0.96
HT-264264189966631000.4630350.77 x 0.56 x 1.06
HT-3523522521288841500.535400.77 x 0.56 x 1.16
HT-44044031516011051500.5540450.77 x 0.56 x 1.26
HT-52852837819213261500.645500.77 x 0.56 x 1.36
HT-88088063032022102000.950651.0 x 0.71 x 1.26
HT-105610567563842652200165751.0 x 0.71 x 1.36
HT-123212328824483094220175851.0 x 0.71 x 1.46
HT-14081408100851235362401.185951.0 x 0.71 x 1.56
HT-15841584113457639782801.2951001.0 x 0.71 x 1.66
HT-18481848132367246413001.621001101.37 x 0.84 x 1.41
HT-21122112151276853043301.741201301.37 x 0.84 x 1.51
HT-23762376170186459673601.861301501.37 x 0.84 x 1.61
HT-264026401890960663040021501701.37 x 0.84 x 1.71
HT-281628162016102470724302.131651801.28 x 1.06 x 1.57
HT-316831682268115279564802.31801901.28 x 1.06 x 1.67
HT-352035202520128088405002.41902001.28 x 1.06 x 1.77
HT-387238722772140897245502.552002201.28 x 1.06 x 1.87
HT-42244224302415361060860032202301.78 x 1.06 x 1.59
HT-4576457632761664114926503.22302401.78 x 1.06 x 1.69
HT-5280528037801920132606503.42402601.78 x 1.06 x 1.79
HT-6336633645362304159127503.62703001.78 x 1.06 x 1.89
HT-84488448604830722121610005.133704001.5 x 1.90 x 1.80
HT-98569856705635842475218005.64204501.5 x 1.90 x 1.97
HT-1267212672907246083182420006.24705001.5 x 1.90 x 2.15
HT-14784147841058453763712823008.46306502.25 x 1.90 x 1.97
HT-16896168961209561444243225009.46707002.25 x 1.90 x 2.2
HT-197121971214112716849504300011.28809002.95 x 1.90 x 2
HT-225282252816128819256576350012.3398010002.95 x 1.90 x 2.2
HT-3379233792241921228884864400016125013003.7 x 1.90 x 2.28
HT-506885068836288184321272966 x 1.95 x 2.45
  1. Q: What is the hatching rate?
    A: 98%
  2. Q: What is the lifespan of an incubator?
    A: From 10 to 12 years
  3. Q: What capacity do your incubators have?
    A: From 36 to 50,688 eggs
  4. Q: Which birds can your incubators be used for?
    A: Chickens, ducks, geese, quail
  5. Q: What can I do if the electric power is off?
    • A1:The mini incubator can use a battery when the power is off. All you need is an inverter and a 12V, 50A battery.
    • A2: If you have a medium incubator, when the power is off, you can keep the temperature constant by:
      1. Fill the kettle and water tank with hot water.
      2. Put the kettle on the furnace.
      3. Connect the heating pipe to the incubator and kettle as shown in the picture in the Introduction section.
